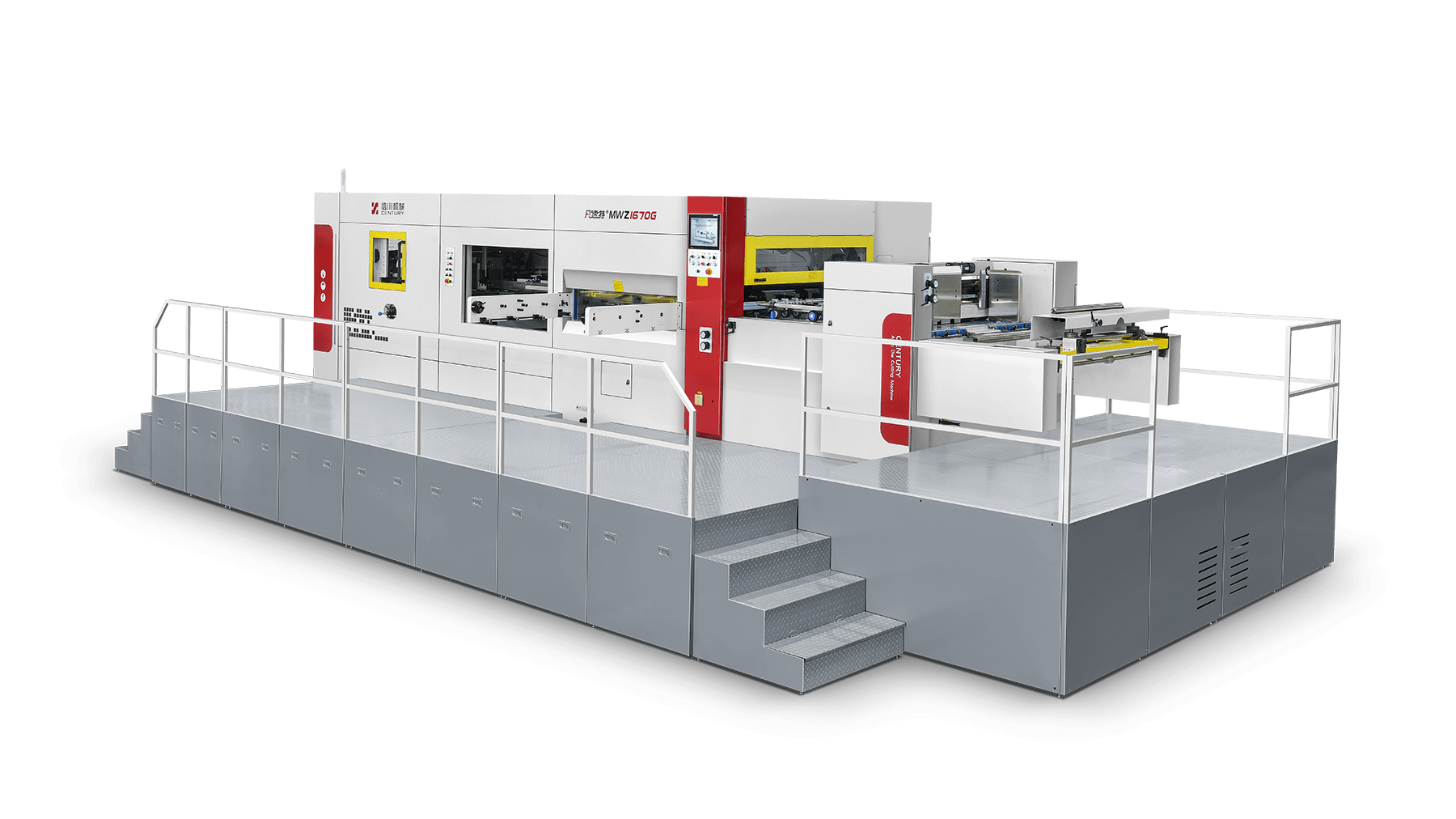

    MWZ-1670G
    Automatic Die Cutting & Stripping Machine
    Get Price Brochure
    Parameters
    MWZ-1670G
    Max. Sheet Size
    1670×1260mm
    Min. Sheet Size
    650×500mm
    Max. Cutting Size
    1640×1230mm
    Max. Cutting Pressure
    400T
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    5500s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1.5mm
    Min. Gripper Margin
    10mm
    Inner Chase Size
    1672×1260mm
    Collection Pile Height
    1460mm
    Main Motor Power
    22kw
    Total Power
    44kw
    Weight
    35000kgs
    Dimension
    10510×5540×3150mm
