Home > Solutions > Die Cutter > MWB-1300Q / 1450Q / 1620Q / 1850Q / 2100Q

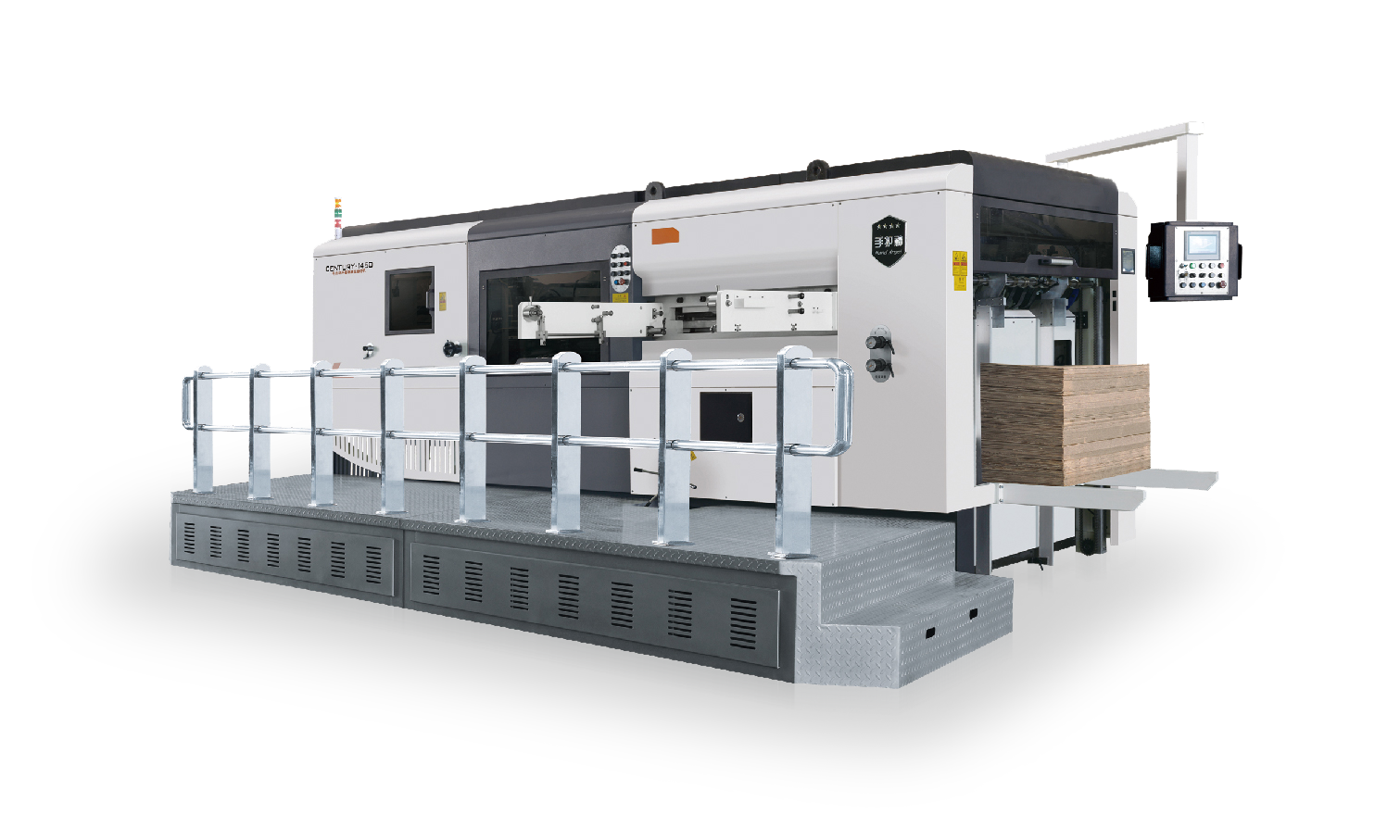

MWB-1300Q / 1450Q / 1620Q / 1850Q / 2100Q
Semi-automatic Die Cutting & Stripping Machine
Features

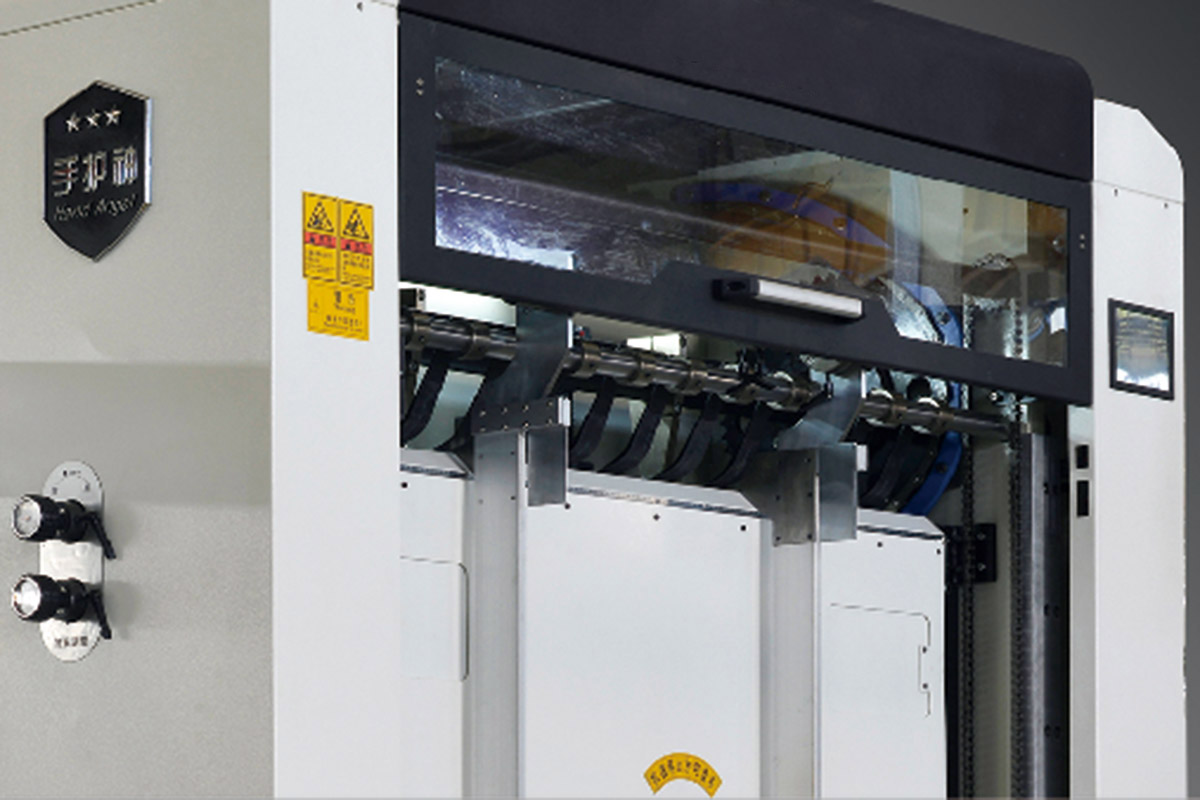

FEEDING SECTION

▪ Various models with the range and optional feeders can be installed accordingly.

▪ Both pin or standard open gripper systems are available.

▪ Suitable for solid board up to 2000gsm and corrugated board up to 9mm.

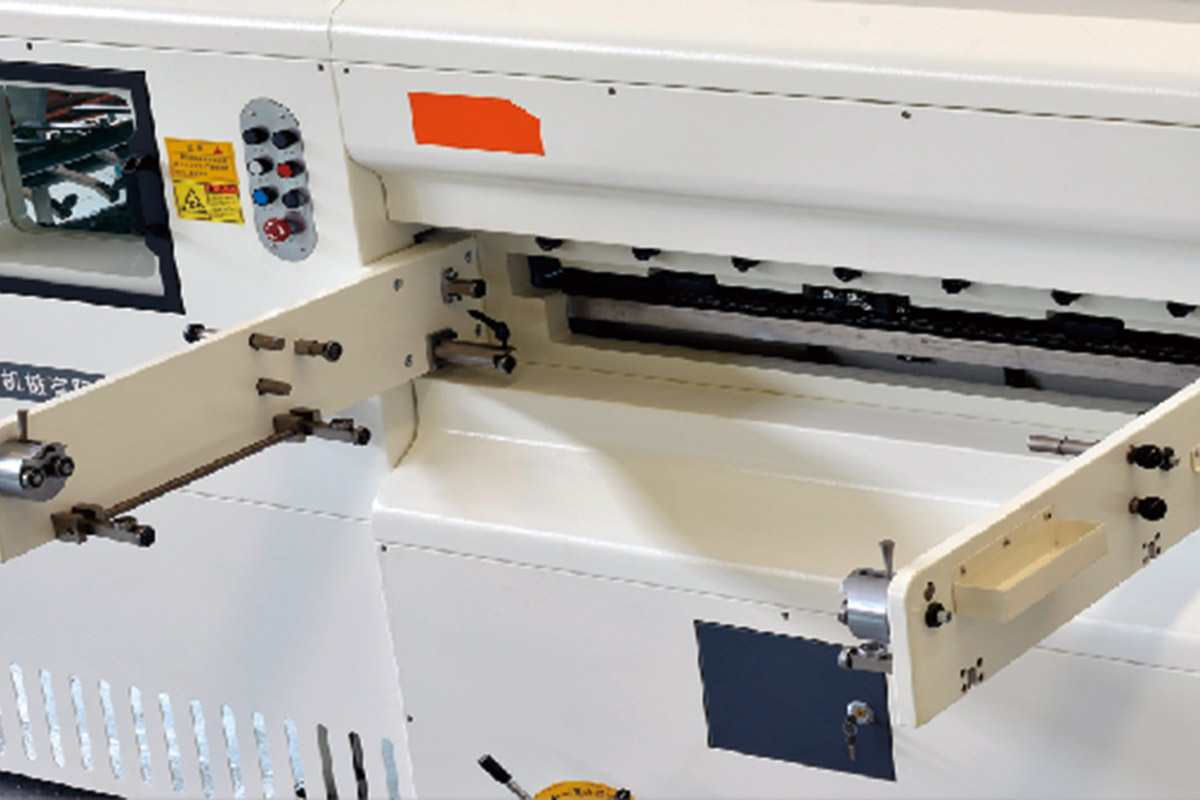

DIE CUTTING SECTION

▪ Main drive mechanism including worm gear and cams on precision crank shaft linkage.

▪ Mechanism including bearing shells to prevent impacting and assures smooth running.

▪ Die cutting pressure generated from 200-350tons depending on model.

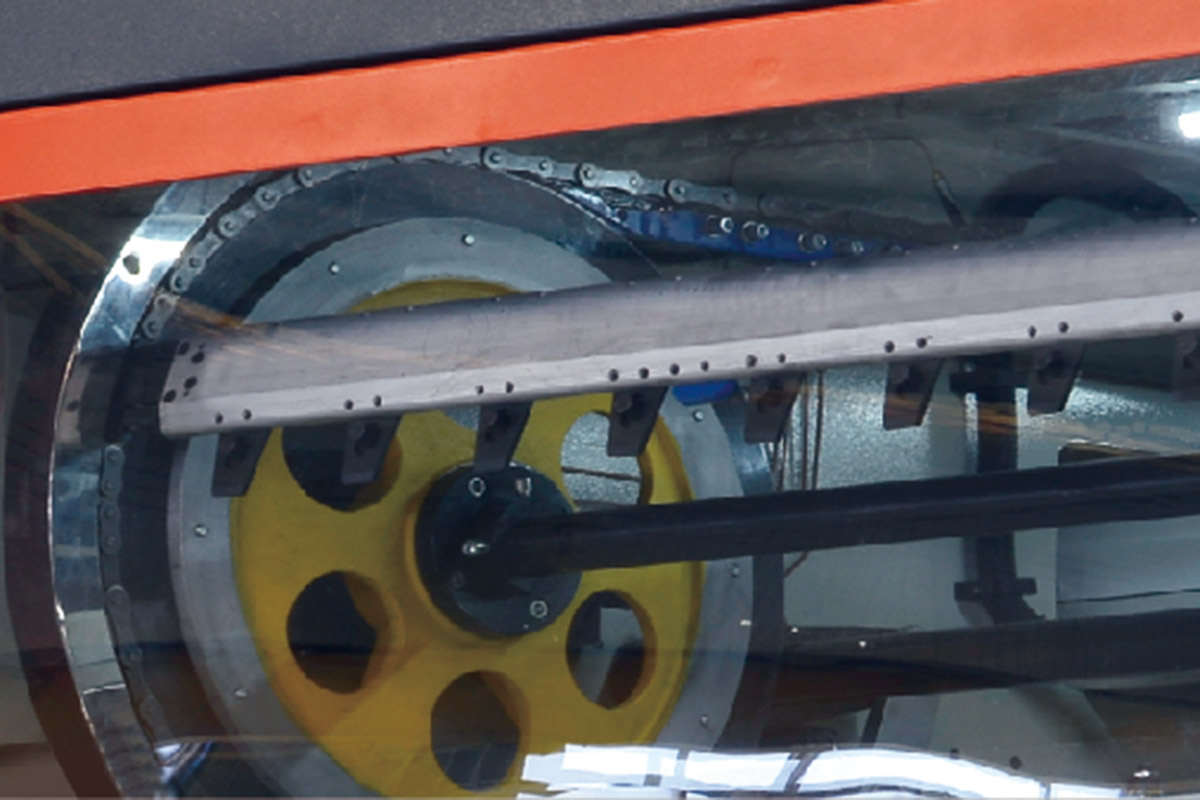

MAIN CHAIN

▪ Quality sourced chains to enhance perfromance and long life.

▪ Main chain drive with overload feature.

▪ High tensile chains for strength and wear resistance.

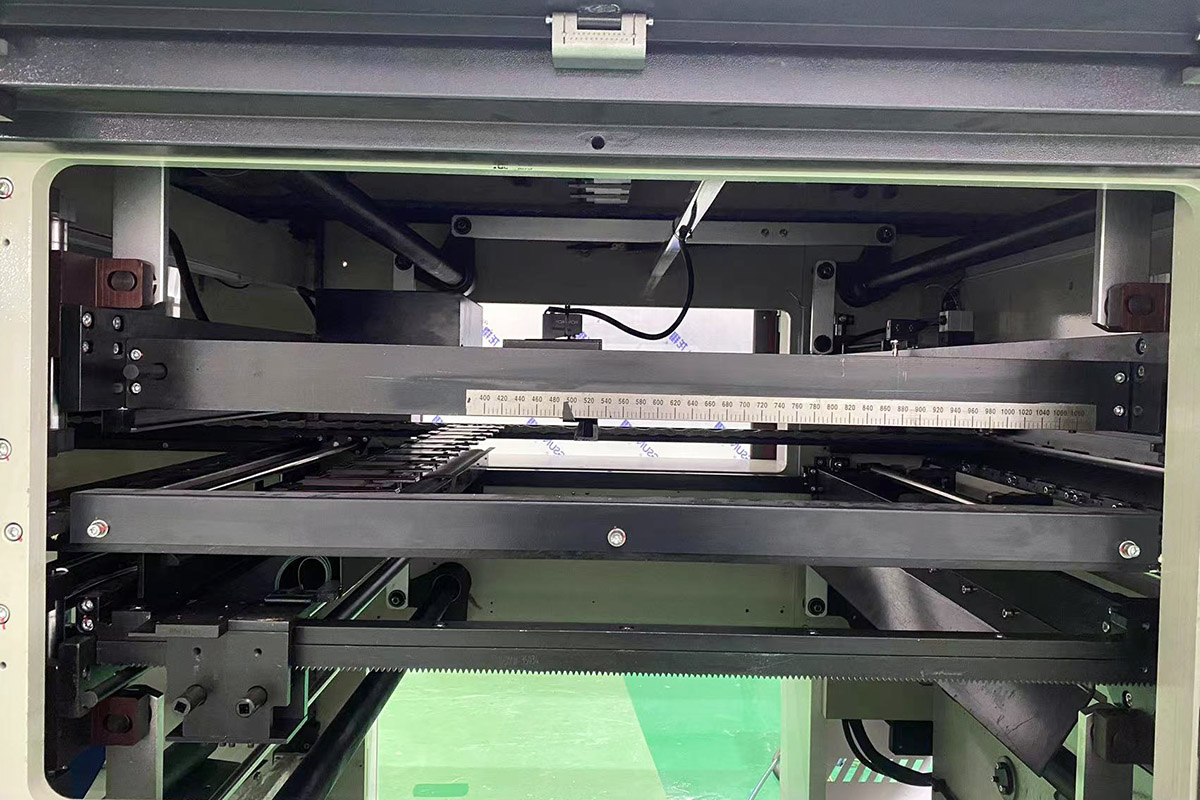

STRIPPING SECTION

▪ Centralized position system, automatic clamp device for fast setup.

▪ Motorized lifting of stripping frames for fast setup.

▪ Stripping for three sides on sheet as well as center waste holes.

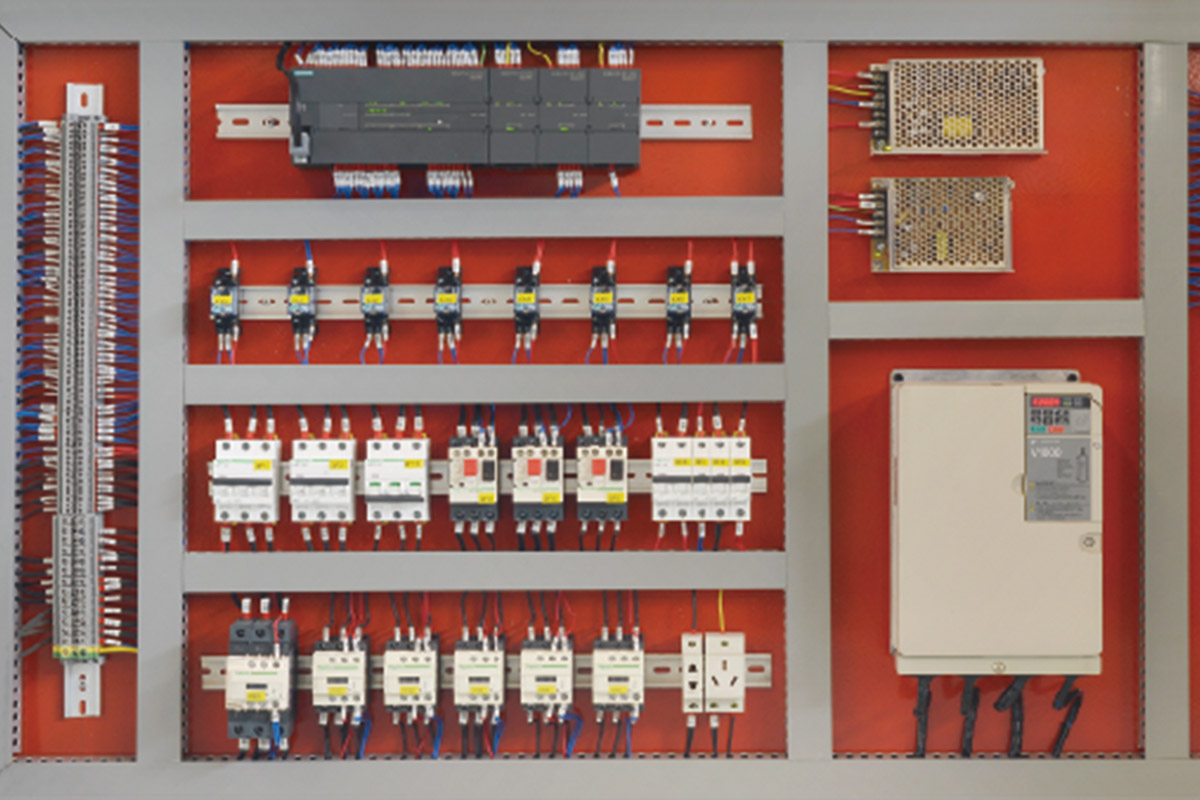

ELECTRICAL CONTROL PART

▪ PLC control, safe and reliable.

▪ Various safe guarding devices that will automatically stop the machine when there is any alarm happened.

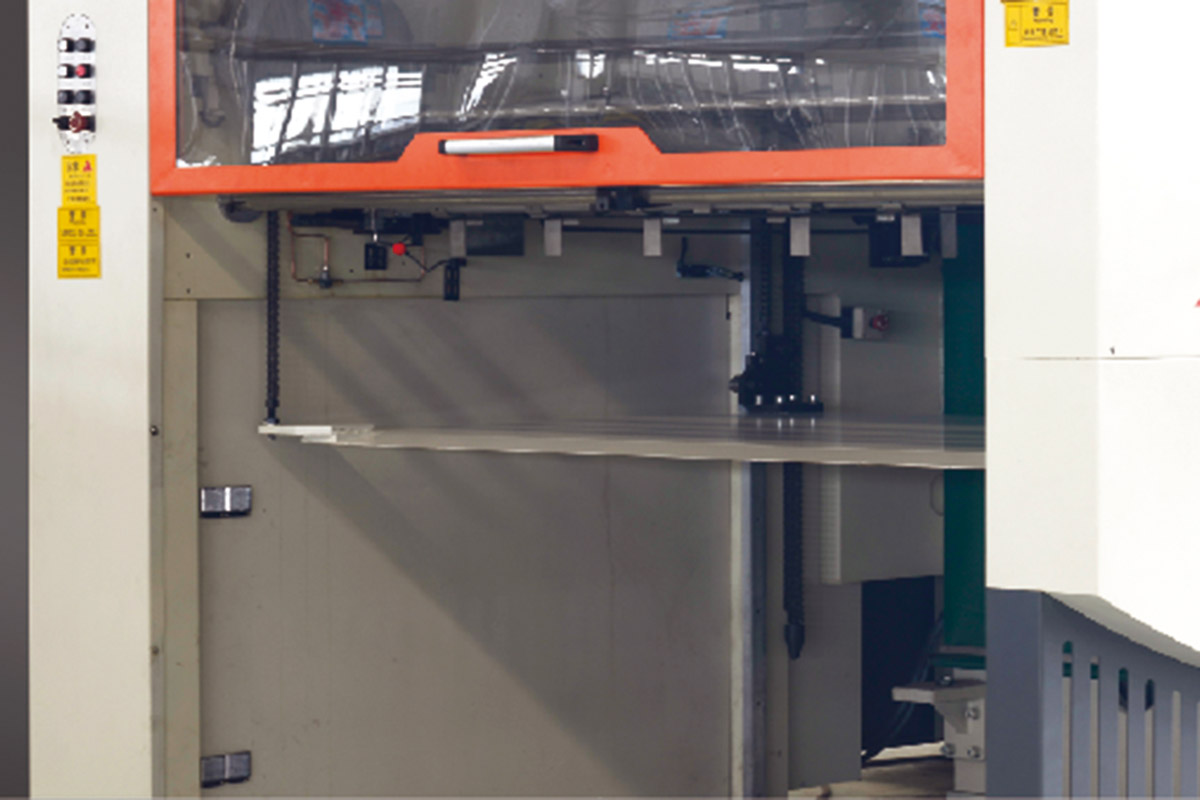

DELIVERY SECTION

▪ Two options available, conventional pallet or moveable trolley.

▪ Continous collecting or batch counter collecting are available.

01 / 06
Max. Sheet Size
1330×980mm
Min. Sheet Size
550×480mm
Max. Cutting Size
1300×960mm
Max. Cutting Pressure
250×10000N
Stock Range
≥1mm, ≤8.5mm
Cutting Precision
±0.5mm
Max. Mechanical Speed
4200s/h
Cutting Rule Height
23.8mm
Pressure Adjust Range
±1mm
Min. Gripper Margin
8mm
Inner Chase Size
1330×1004mm
Collection Pile Height
1100mm
Main Motor Power
11kw
Total Power
17kw
Weight
17000kgs
Dimension
7440×4540×2425mm
Max. Sheet Size
1480×1080mm
Min. Sheet Size
550×480mm
Max. Cutting Size
1450×1050mm
Max. Cutting Pressure
300×10000N
Stock Range
≥1mm, ≤8.5mm
Cutting Precision
±0.5mm
Max. Mechanical Speed
4000s/h
Cutting Rule Height
23.8mm
Pressure Adjust Range
±1mm
Min. Gripper Margin
8mm
Inner Chase Size
1480×1080mm
Collection Pile Height
1118mm
Main Motor Power
15kw
Total Power
21kw
Weight
19000kgs
Dimension
7750×4720×2440mm
Max. Sheet Size
1650×1210mm
Min. Sheet Size
650×550mm
Max. Cutting Size
1620×1190mm
Max. Cutting Pressure
300×10000N
Stock Range
≥1mm, ≤8.5mm
Cutting Precision
±0.5mm
Max. Mechanical Speed
3600s/h
Cutting Rule Height
23.8mm
Pressure Adjust Range
±1mm
Min. Gripper Margin
8mm
Inner Chase Size
1650×1220mm
Collection Pile Height
1140mm
Main Motor Power
15kw
Total Power
21kw
Weight
24000kgs
Dimension
8150×4920×2566mm
Max. Sheet Size
1880×1420mm
Min. Sheet Size
650×550mm
Max. Cutting Size
1850×1400mm
Max. Cutting Pressure
350×10000N
Stock Range
≥1mm, ≤8.5mm
Cutting Precision
±0.5mm
Max. Mechanical Speed
3200s/h
Cutting Rule Height
23.8mm
Pressure Adjust Range
±1mm
Min. Gripper Margin
8mm
Inner Chase Size
1880×1430mm
Collection Pile Height
1505mm
Main Motor Power
22kw
Total Power
25kw
Weight
28000kgs
Dimension
9360×5930×2764mm
Max. Sheet Size
2110×1520mm
Min. Sheet Size
650×550mm
Max. Cutting Size
2080×1500mm
Max. Cutting Pressure
400×10000N
Stock Range
≥1mm, ≤8.5mm
Cutting Precision
±0.5mm
Max. Mechanical Speed
3000s/h
Cutting Rule Height
23.8mm
Pressure Adjust Range
±1mm
Min. Gripper Margin
8mm
Inner Chase Size
2110×1524mm
Collection Pile Height
1505mm
Main Motor Power
30kw
Total Power
33kw
Weight
34500kgs
Dimension
9610×6280×2830mm
