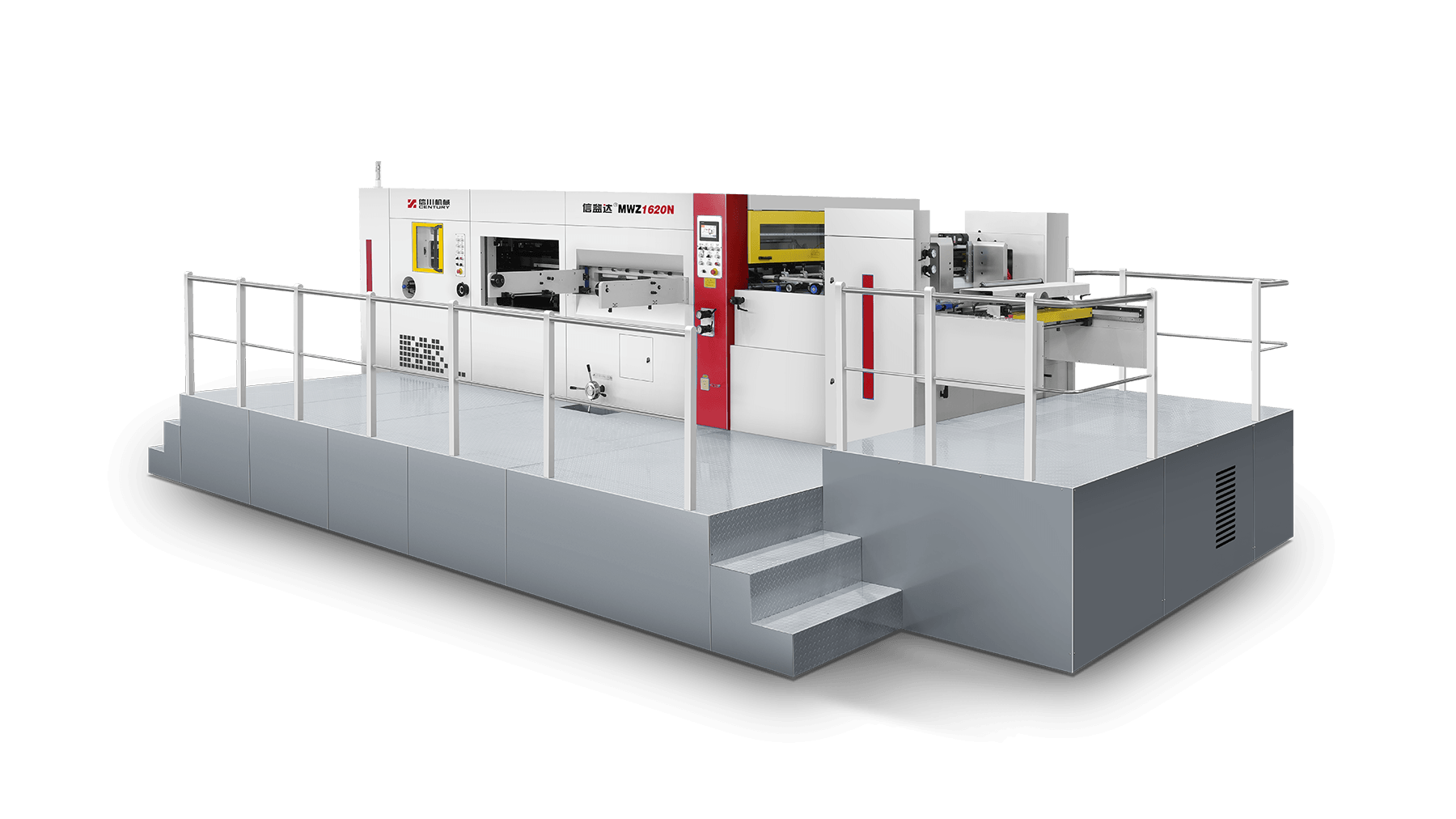

    MWZ-1300N / 1450N / 1620N / 1850N / 2100N
    Automatic Die Cutting & Stripping Machine
    Get Price Brochure
    Parameters
    MWZ-1300N MWZ-1450N MWZ-1620N MWZ-1850N MWZ-2100N
    Max. Sheet Size
    1330×980mm
    Min. Sheet Size
    550×480mm
    Max. Cutting Size
    1300×960mm
    Max. Cutting Pressure
    300T
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    5200s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1mm
    Min. Gripper Margin
    8mm
    Inner Chase Size
    1326×1000mm
    Collection Pile Height
    1320mm
    Main Motor Power
    11kw
    Total Power
    29kw
    Weight
    22500kgs
    Dimension
    8155×4517×2620mm
    Max. Sheet Size
    1480×1080mm
    Min. Sheet Size
    600×500mm
    Max. Cutting Size
    1450×1050mm
    Max. Cutting Pressure
    400T
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    5000s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1mm
    Min. Gripper Margin
    8mm
    Inner Chase Size
    1476×1100mm
    Collection Pile Height
    1330mm
    Main Motor Power
    15kw
    Total Power
    33kw
    Weight
    23500kgs
    Dimension
    8650×4917×2627mm
    Max. Sheet Size
    1650×1210mm
    Min. Sheet Size
    650×500mm
    Max. Cutting Size
    1620×1190mm
    Max. Cutting Pressure
    450T
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    4800s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1mm
    Min. Gripper Margin
    8mm
    Inner Chase Size
    1646×1220mm
    Collection Pile Height
    1390mm
    Main Motor Power
    18.5kw
    Total Power
    37kw
    Weight
    30500kgs
    Dimension
    9500×5254×2687mm
    Max. Sheet Size
    1880×1420mm
    Min. Sheet Size
    650×550mm
    Max. Cutting Size
    1850×1400mm
    Max. Cutting Pressure
    500T
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    4500s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1mm
    Min. Gripper Margin
    8mm
    Inner Chase Size
    1880×1430mm
    Collection Pile Height
    1670mm
    Main Motor Power
    22kw
    Total Power
    40kw
    Weight
    32000kgs
    Dimension
    10630×6100×2800mm
    Max. Sheet Size
    2110×1520mm
    Min. Sheet Size
    650×500mm
    Max. Cutting Size
    2080×1500mm
    Max. Cutting Pressure
    500T
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    3500s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1mm
    Min. Gripper Margin
    8mm
    Inner Chase Size
    2110×1524mm
    Collection Pile Height
    1650mm
    Main Motor Power
    30kw
    Total Power
    49kw
    Weight
    38500kgs
    Dimension
    11450×6360×2830mm
