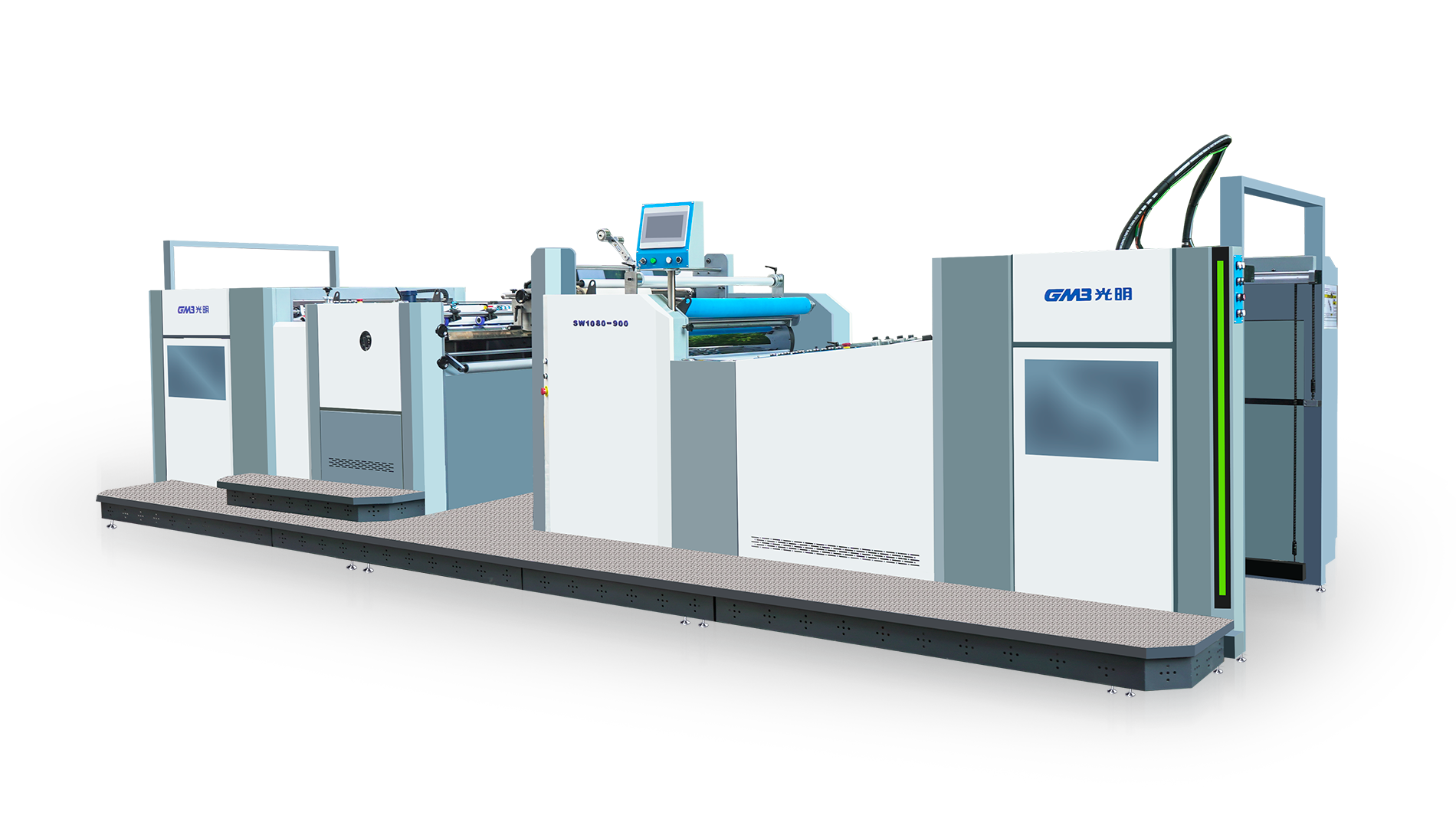

SW-1080
Automatic Thermal Film Laminator
Features

Non-stop Sheet  Feeder

▪ Servo-controlled non-stop sheet feeder with pre-stacker device for high volume production without stop.

▪ Feeder head can be adjusted easily in right position according various sheet size.

▪ The photoelectric sensor detects the sheet missing for continuous running.

Side Lay

▪ The side lay cam mechanism guarantees precise sheet alignment at all times.

Electromagnetic Heating System

▪ The electromagnetic heating system shortens heating time to 90s and controls temperature accuracy ±1℃.

▪ Fast pre-heating, energy saving, and environment friendly.

Auto Film Shaft Lifting Device

▪ With the automatic lifting of the film roller during film changeover, saves a lot of time and labor.

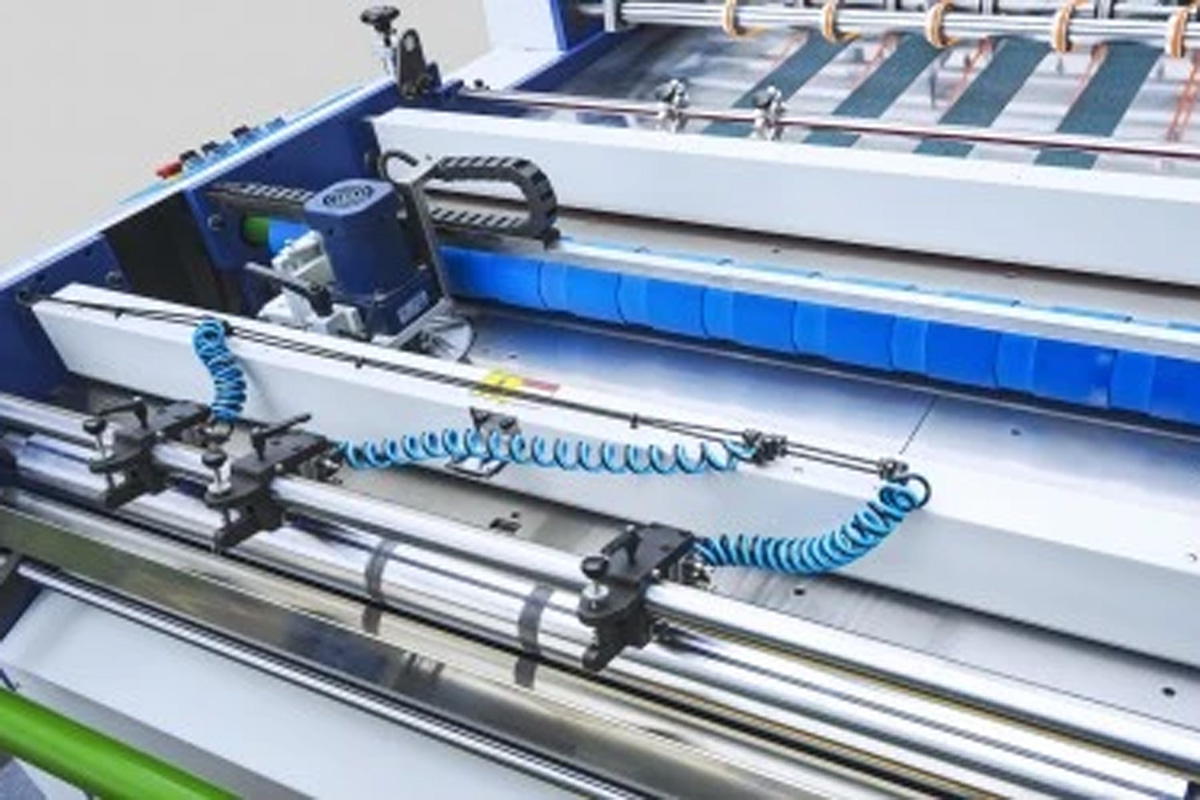

High Speed Separating System

▪ Pneumatic separating system with the rotary cutter, pneumatic perforating device and photoelectrical detector to rapidly separate the sheet according to the sheet size.


Automatic Delivery System

▪ Stacker collects the sheets in order by a pneumatic clamping device.

Human-computer Interface

▪ User-friendly interface with a colorful touch screen simplifies the operation process.

▪ Sheet size, overlap distance, and running speed can be set easily.

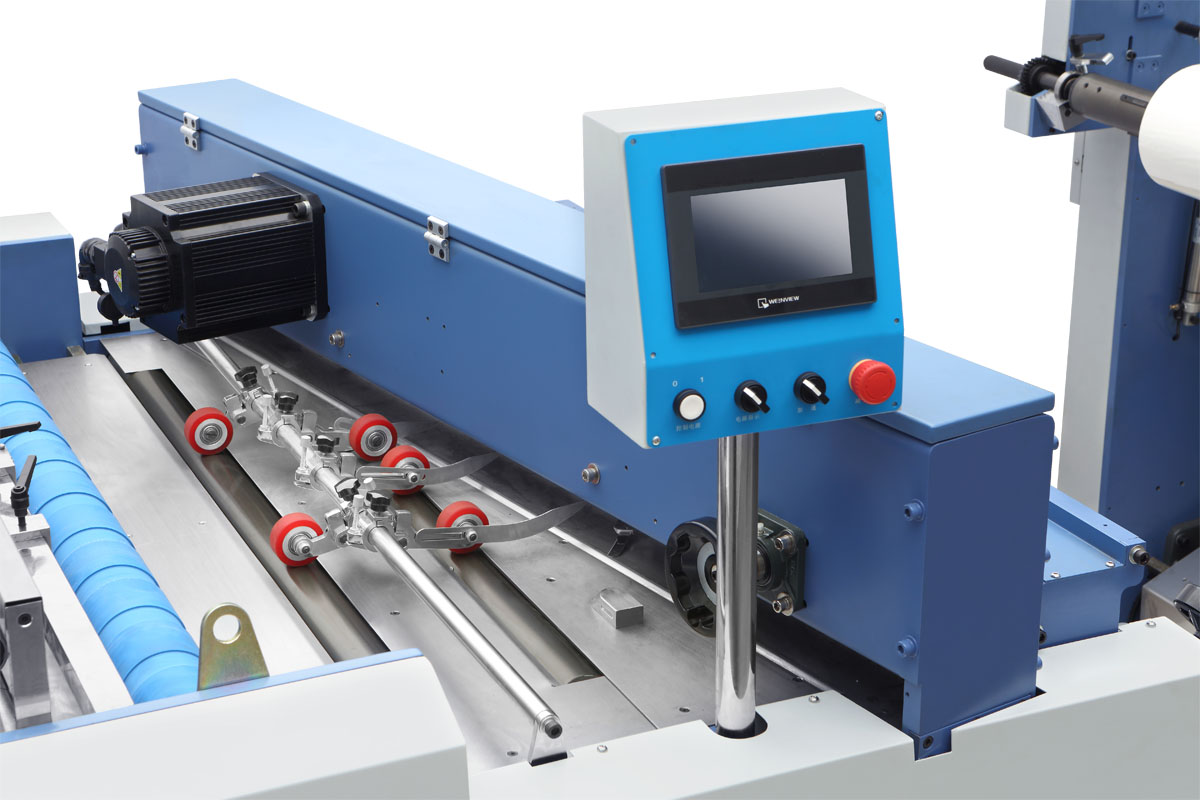

Optional Chain Cutter System

▪ If you have applications on PET or PVC film lamination, it is necessary to have the chain cutter system for separation.

It is high-precise separating without film edge remains.

01 / 08
Max. Sheet Size (W×L)
1080×900mm
Min. Sheet Size (W×L)
300×300mm
Sheet Thickness
105-500gsm
Laminating Speed
0-100m/min
Laminating Speed (chain cutter)
0-80m/min (PET film)
Gross Power
45/20kw
Total Weight
6700kgs
Dimension(L×W×H)
8700×2410×1960mm
Pre-stacker Length
1850mm
Max. Sheet Size (W×L)
1080×1300mm
Min. Sheet Size (W×L)
300×300mm
Sheet Thickness
105-500gsm
Laminating Speed
0-100m/min
Laminating Speed (chain cutter)
0-80m/min (PET film)
Gross Power
45/20kw
Total Weight
7700kgs
Dimension(L×W×H)
9500×2410×1960mm
Pre-stacker Length
1850mm
