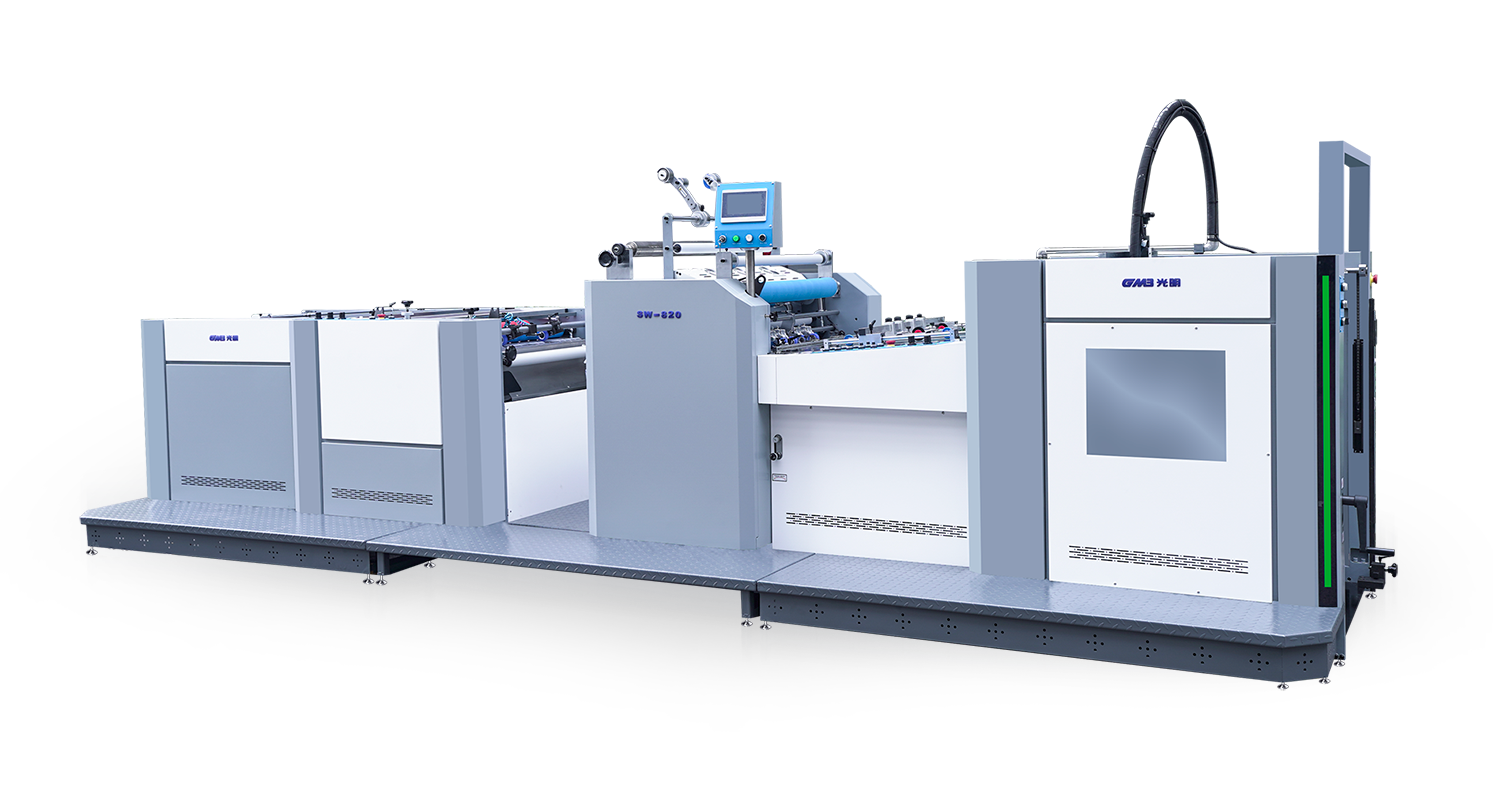

SW-820 / SWAFM-1050
Automatic Thermal Film Laminator
Features

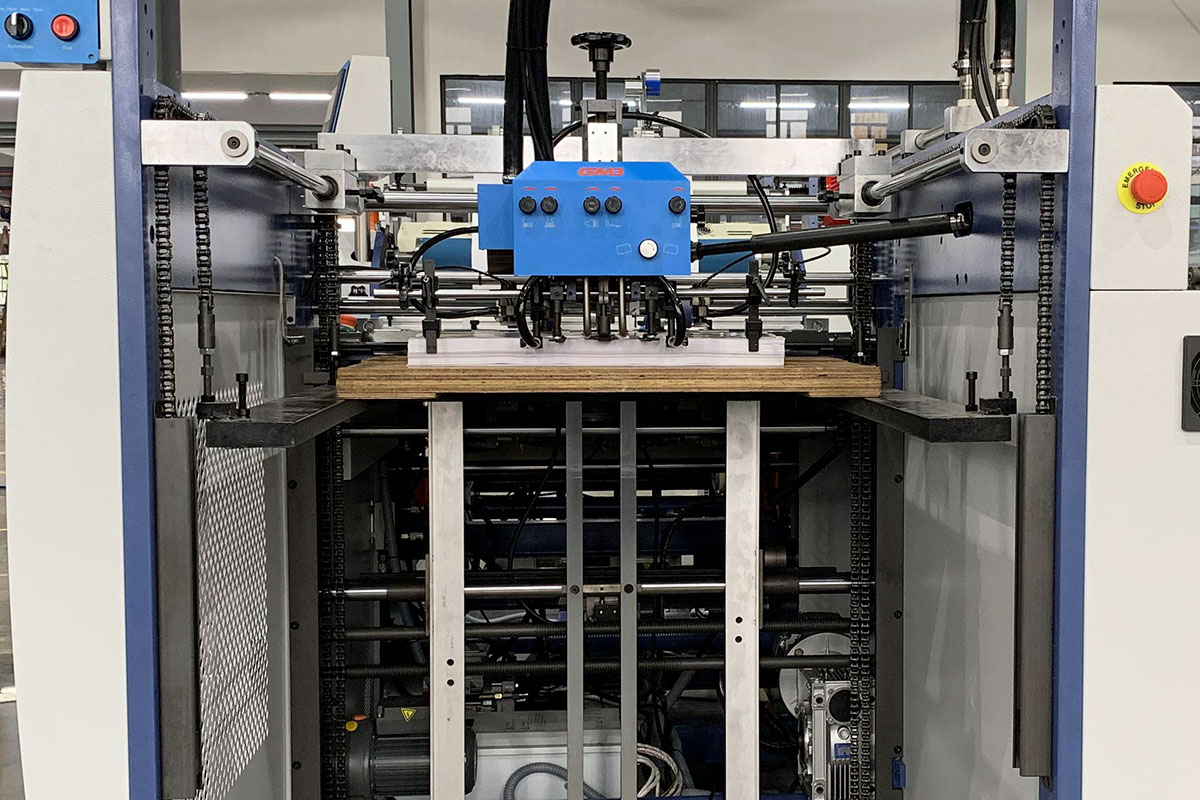

Non-stop Sheet  Feeder

Servo-controlled non-stop sheet feeder with pre-stacker device for high volume production without stop.

Feeder head can be adjusted easily in right position according various sheet size.

The photoelectric sensor detects the sheet missing for continuous running.

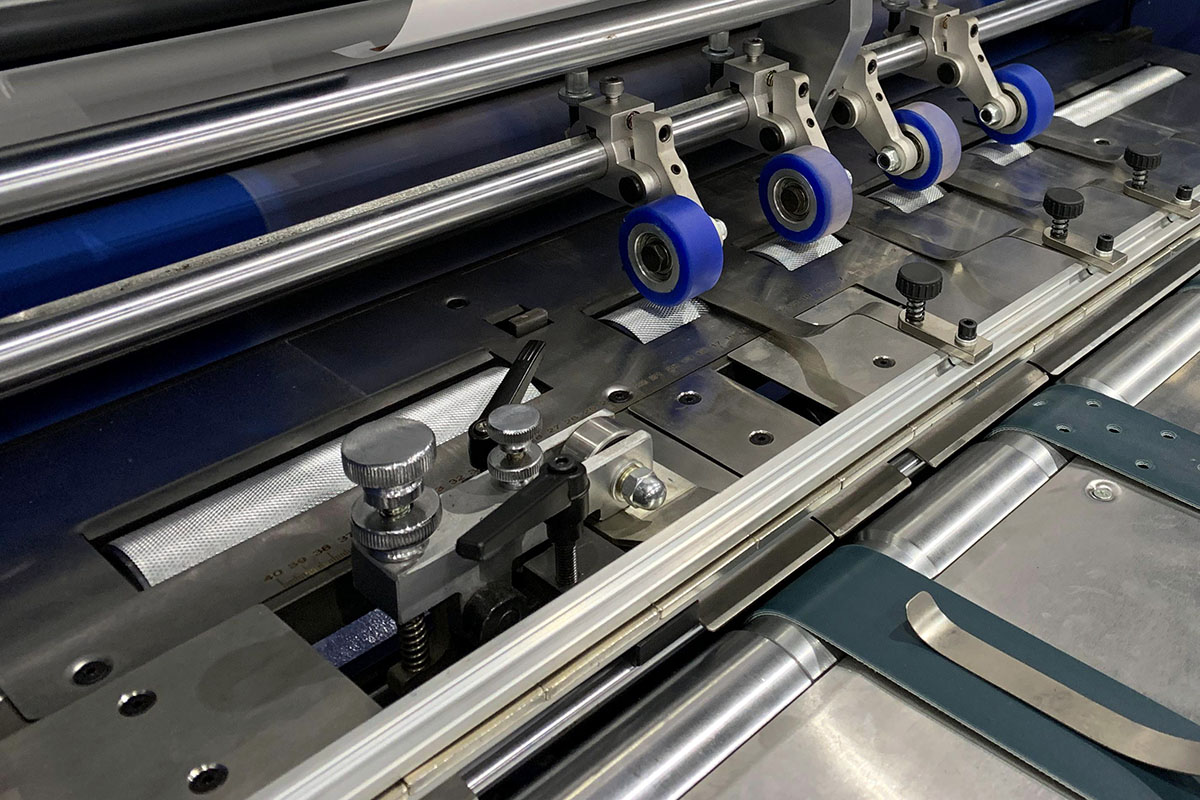

Side Lay Regulator

▪ The side lay cam mechanism guarantees precise sheet alignment at all times.

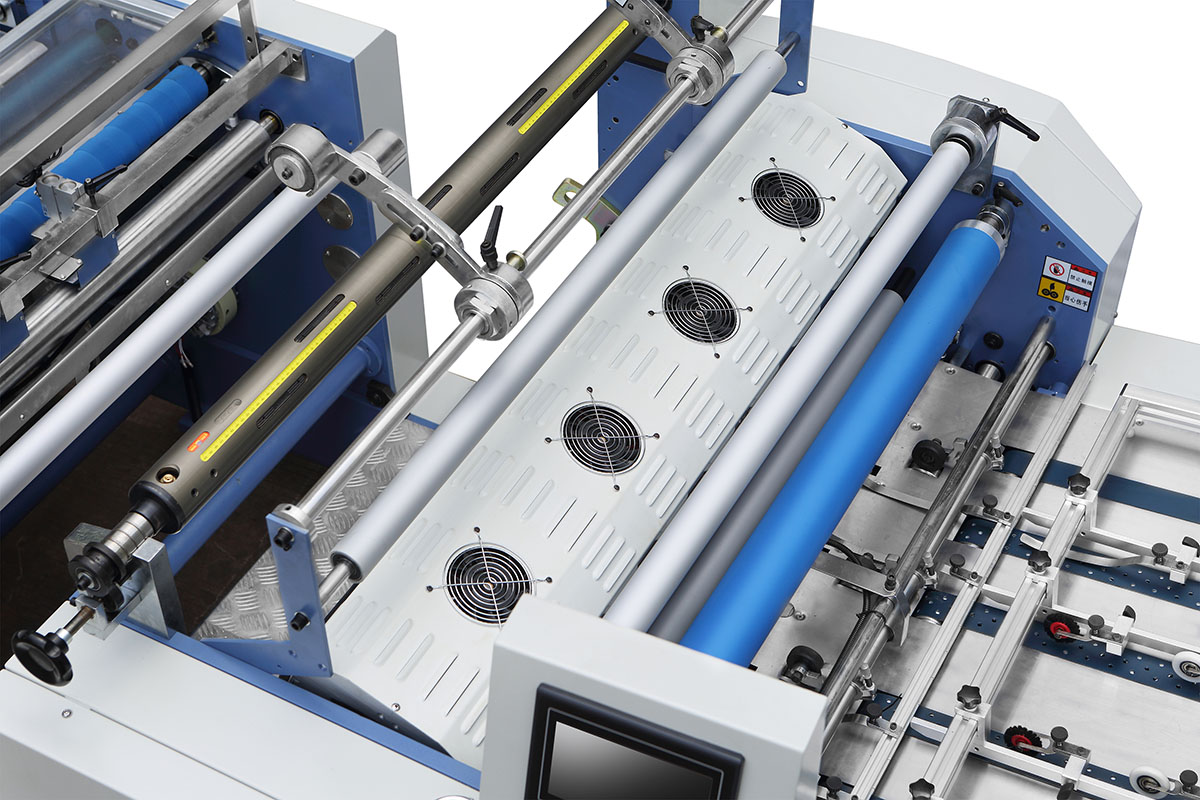

Electromagnetic Heating System

The electromagnetic heating system shortens heating time to 90s and controls temperature accuracy ±1℃.

Fast pre-heating, energy saving, and environment friendly.

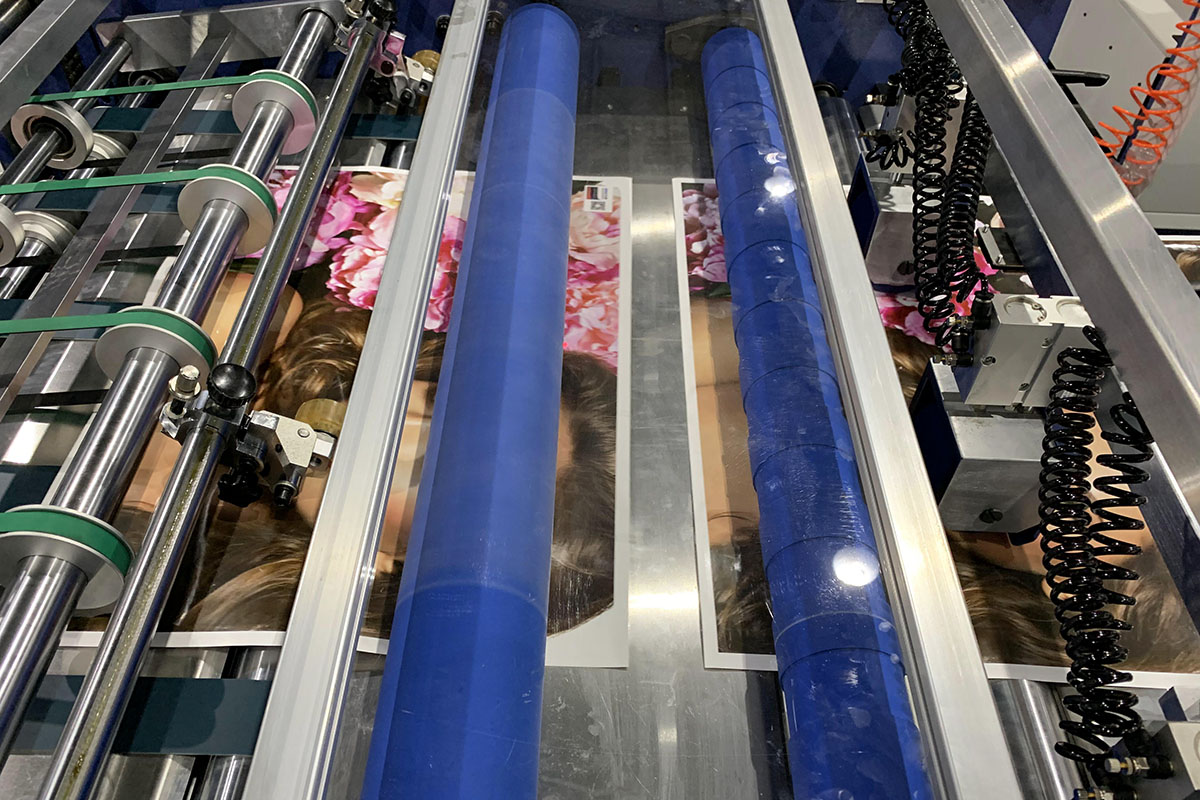

Pneumatic Separating System

The pneumatic integral bump roller separator runs in line.

The second perforating knife is equipped before separation.

Anti Curl Bar Device

▪ Adjustable anti curl bar before separator can be adjusted the laminated sheets from curl.

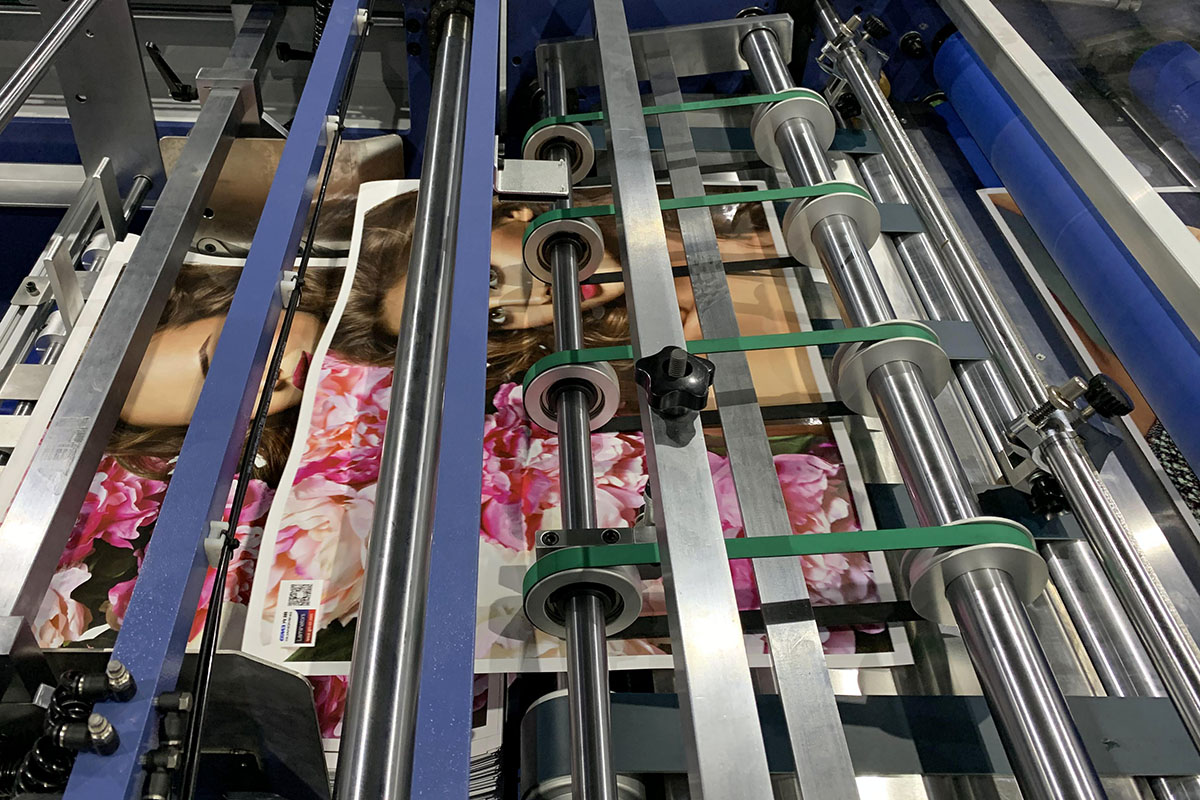

Sheet Transfer Device

Sheet transfer device delivers the sheet into an automatic stacker in order.

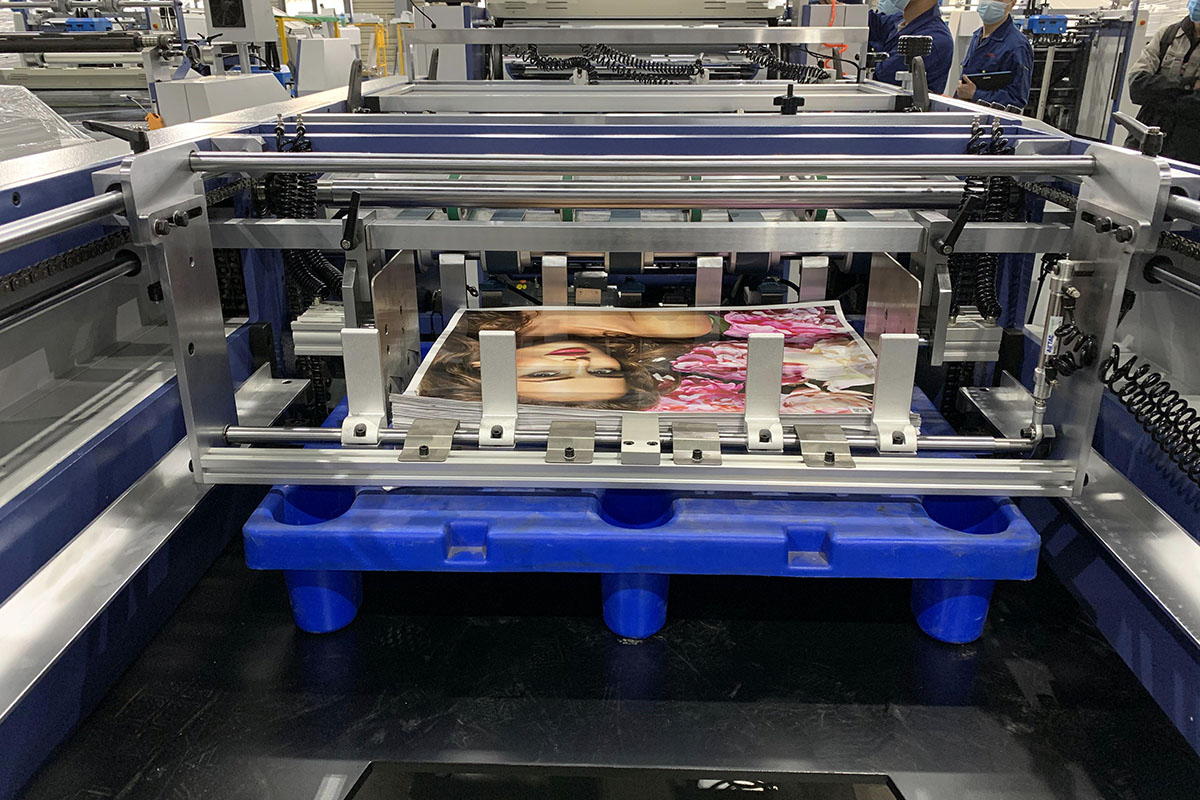

Automatic Delivery System

Stacker collects the sheets in order by a pneumatic clamping device.

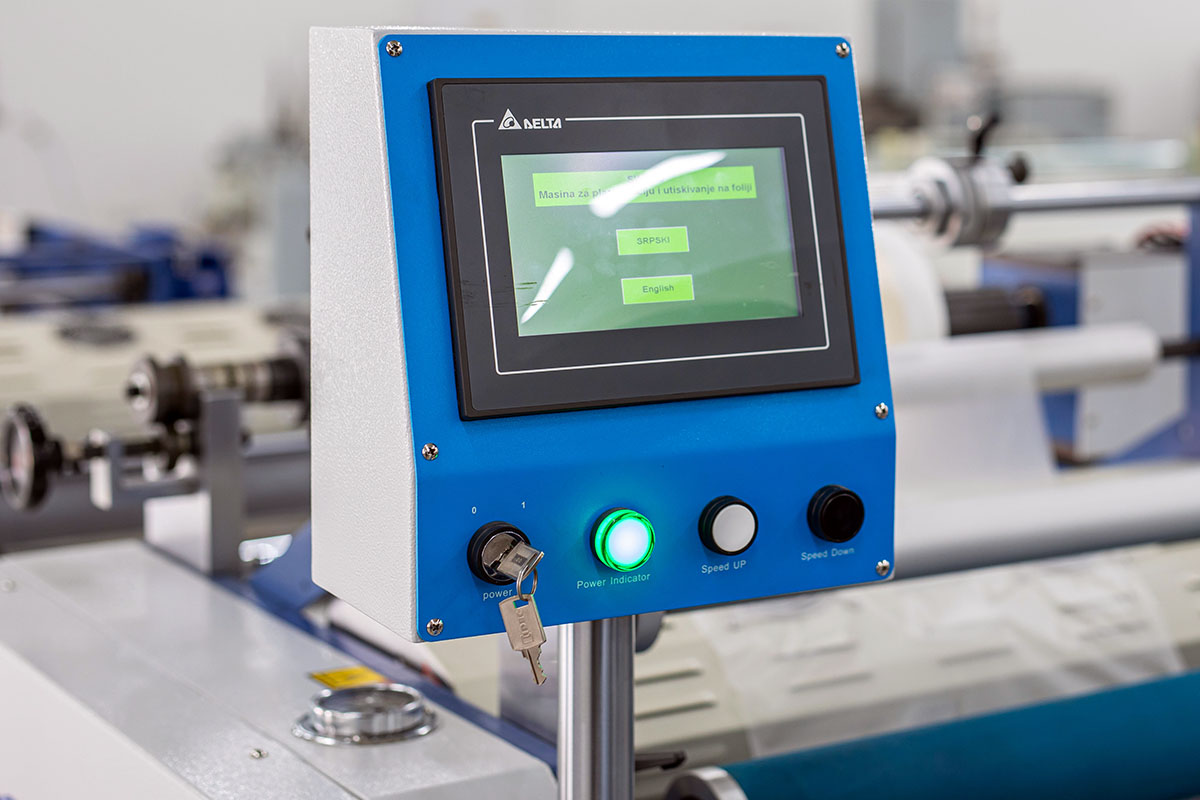

Human-computer Interface

User-friendly interface with a colorful touch screen simplifies the operation process.

Sheet size, overlap distance, and running speed can be set easily.

01 / 08
Parameters
Max. Sheet Size
820×1050mm
Min. Sheet Size
300×300mm
Sheet Thickness
90-600gsm
Laminating Speed
0-80m/min
Gross Power
35/18kw
Total Weight
4000kgs
Dimension(LxWxH)
6200×2000×1900mm
Pre-stacker Length
1850mm
Max. Sheet Size
1050×820mm
Min. Sheet Size
300×300mm
Sheet Thickness
90-600gsm
Laminating Speed
0-80m/min
Gross Power
35/18kw
Total Weight
3800kgs
Dimension(LxWxH)
5200×2200×1900mm
Pre-stacker Length
1850mm
