    Home > Solutions > Cutting System & Guillotines > LD-130 / 145 / 165 / 188

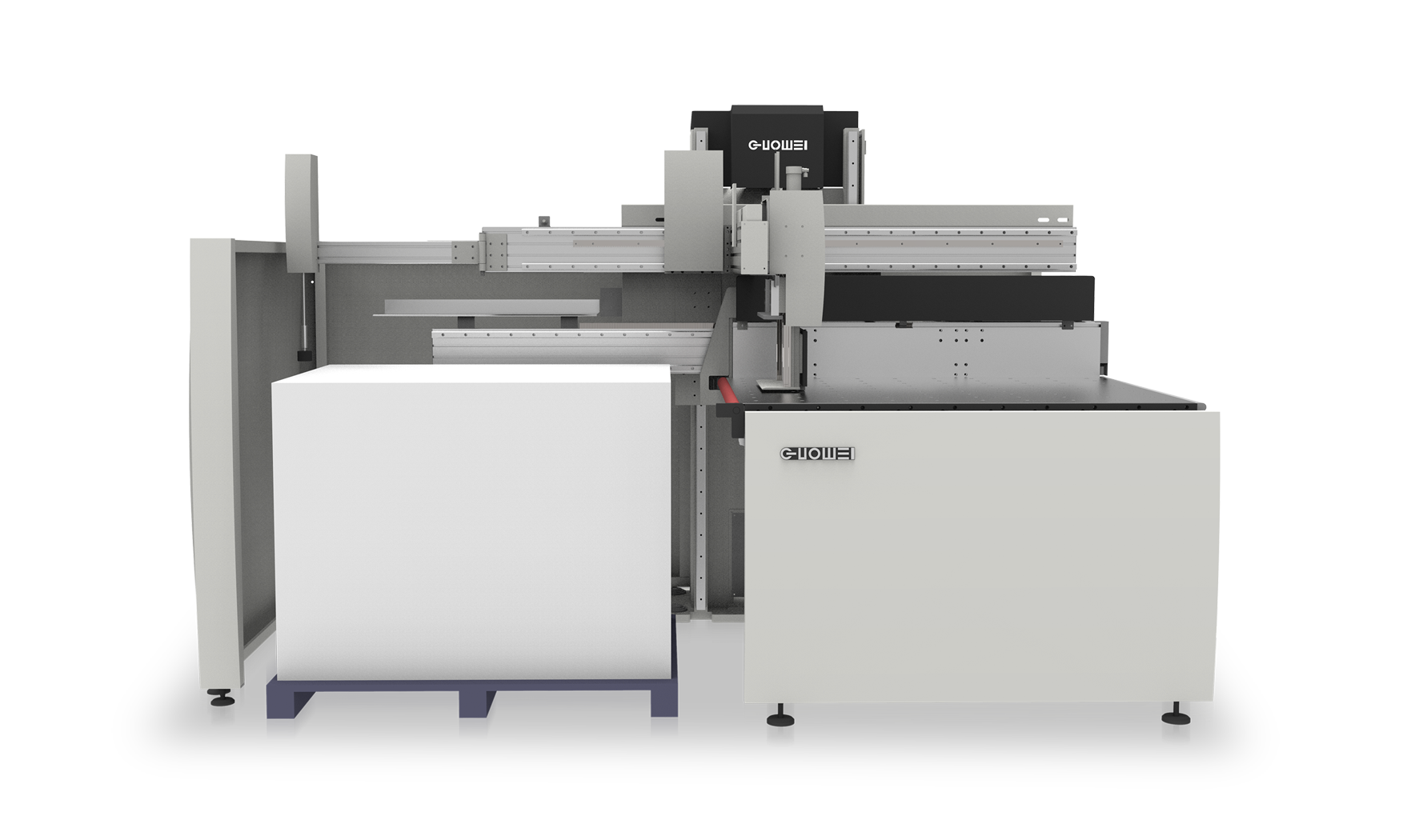

    LD-130 / 145 / 165 / 188
    Loading Machine
    Get Price Brochure
    Parameters
    LD-130 LD-145 LD-165 LD-188
    Max. Height of Paper Pile
    140cm
    Max. Load
    200kgs
    Power
    3kw
    Air Consumption
    4L/min
    Suitable Paper Cutter Size
    115/130/137
    Weight
    1200kgs
    Dimension
    2660×2060×2000mm
    Max. Height of Paper Pile
    140cm
    Max. Load
    300kgs
    Power
    4kw
    Air Consumption
    4L/min
    Suitable Paper Cutter Size
    155/166/176
    Weight
    1900kgs
    Dimension
    3210×2240×2000mm
    Max. Height of Paper Pile
    140cm
    Max. Load
    400kgs
    Power
    4kw
    Air Consumption
    4L/min
    Suitable Paper Cutter Size
    166/176/186
    Weight
    2100kgs
    Dimension
    3860×2360×2000mm
    Max. Height of Paper Pile
    140cm
    Max. Load
    500kgs
    Power
    4kw
    Air Consumption
    4L/min
    Suitable Paper Cutter Size
    176/186/220
    Weight
    2300kgs
    Dimension
    4200×2600×2150mm
    Related Products
    EG-130M / 145M / 165M / 188M
    Unloading Machine
    F Series
    Guillotine
