    Home > Solutions > Die Cutter > MWB-1300 / 1450 / 1620 / 1850 / 2100

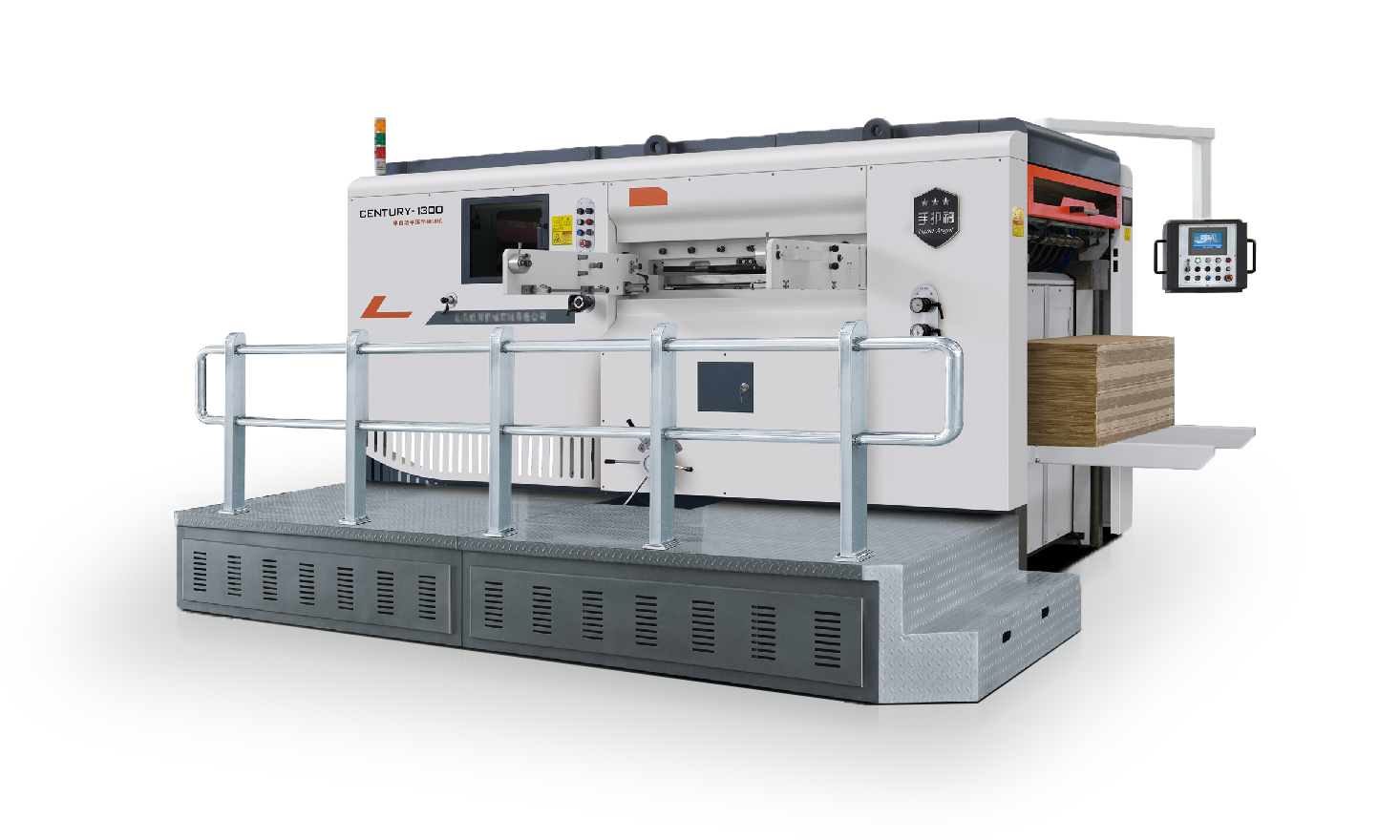

    MWB-1300 / 1450 / 1620 / 1850 / 2100
    Semi-automatic Die Cutting Machine
    Get Price Brochure
    Features

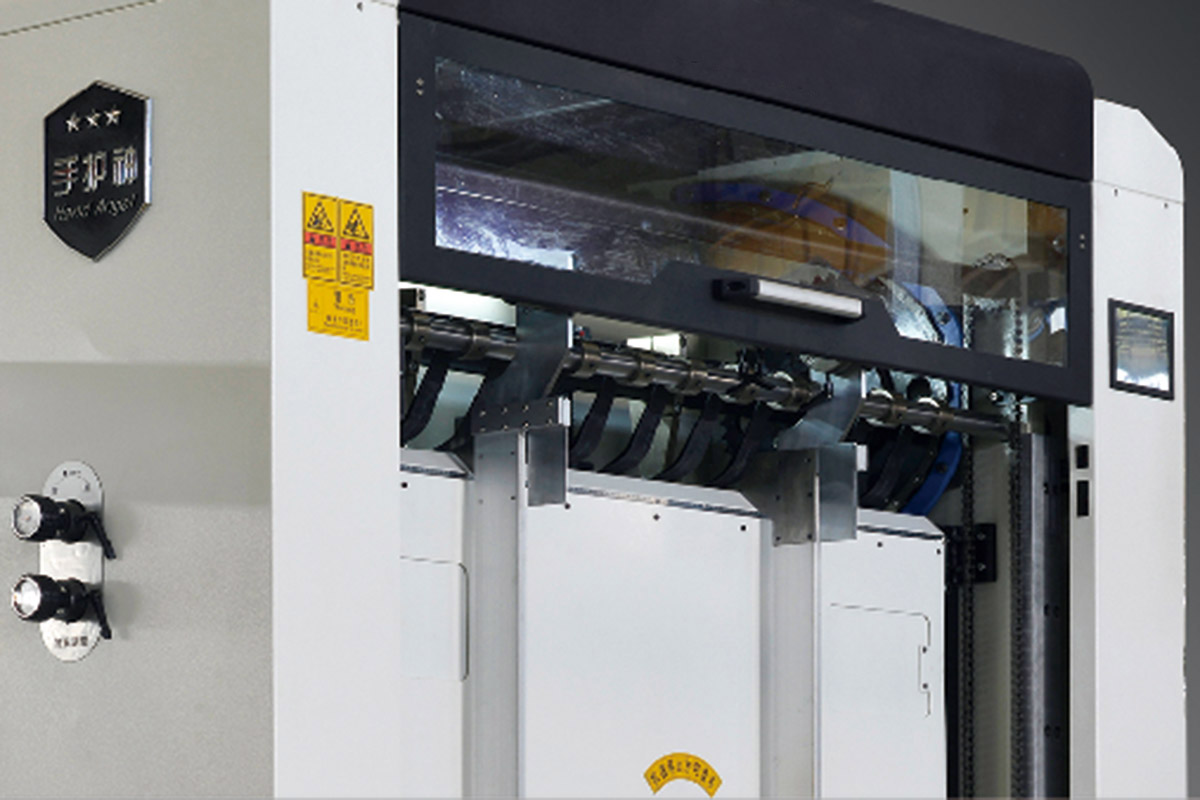

    FEEDING SECTION

    ▪ Various models with the range and optional feeders can be installed accordingly.

    ▪ Both pin or standard open gripper systems are available.

    ▪ Suitable for solid board up to 2000gsm and corrugated board up to 9mm.

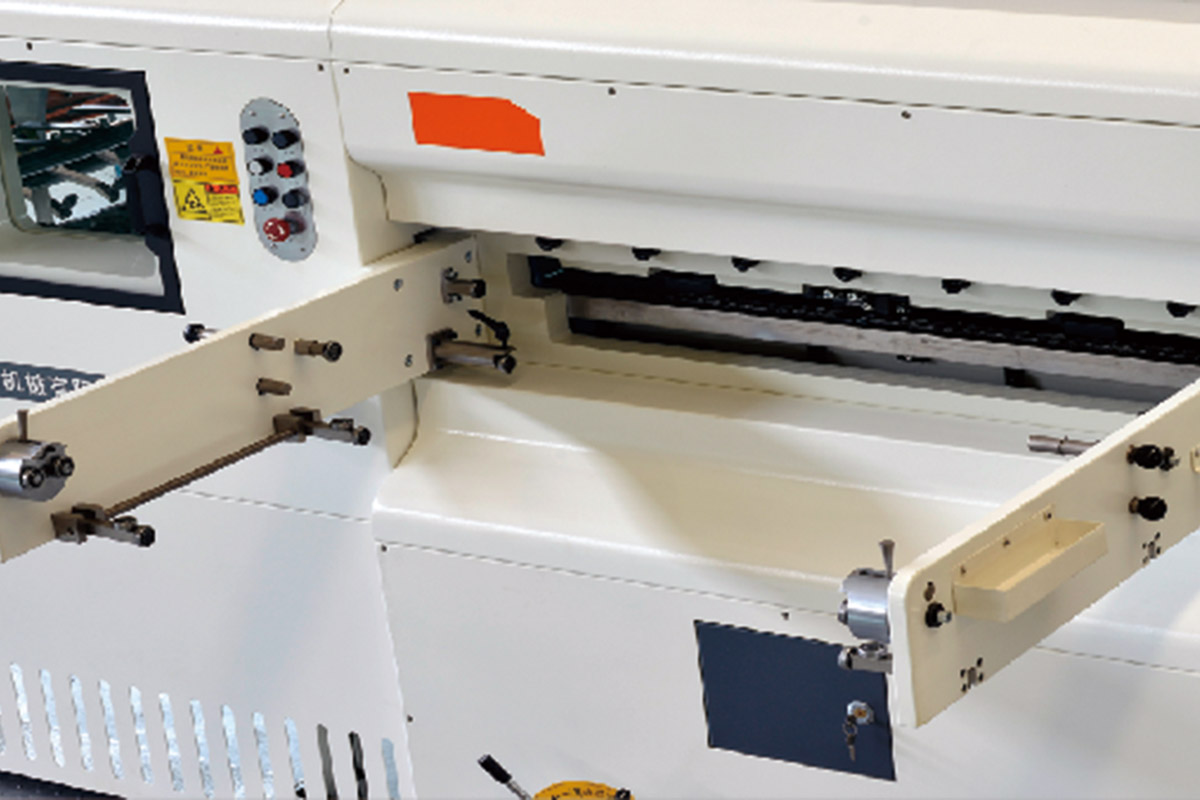

    DIE CUTTING SECTION

    ▪ Main drive mechanism including worm gear and cams on precision crank shaft linkage.

    ▪ Mechanism including bearing shells to prevent impacting and assures smooth running.

    ▪ Die cutting pressure generated from 200-350tons depending on model.

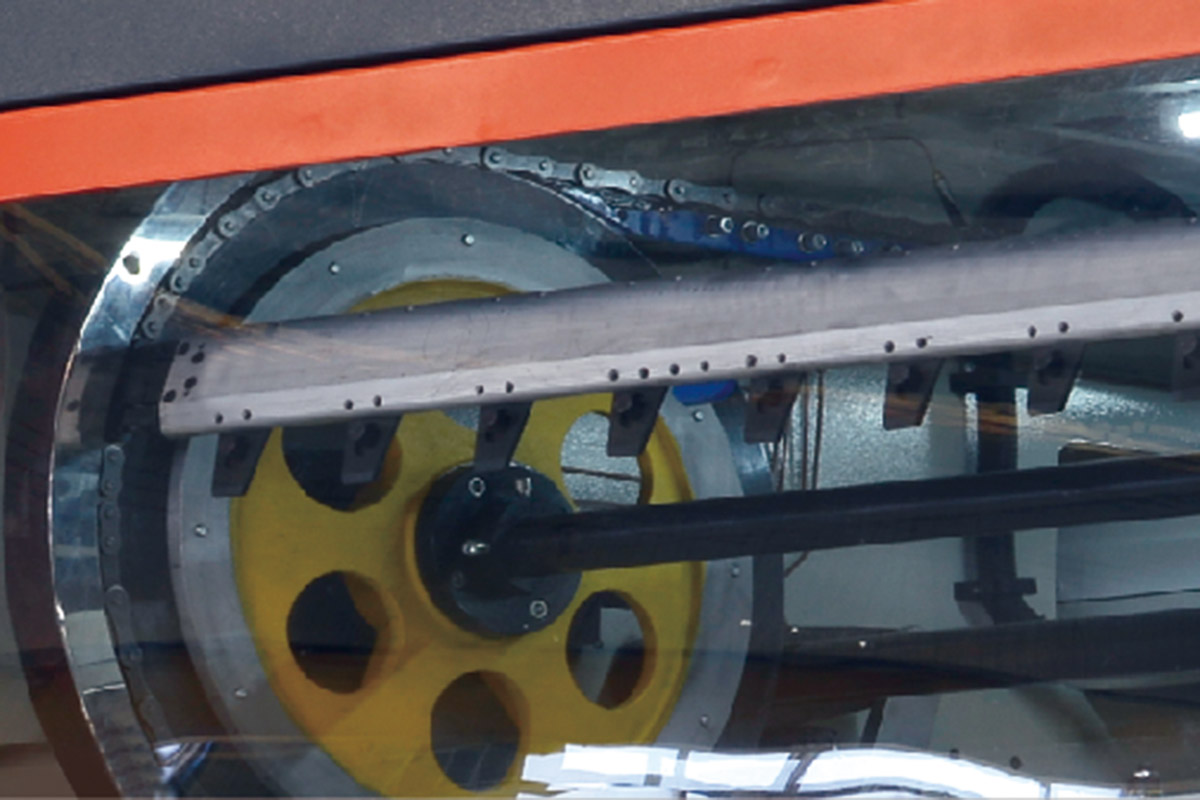

    MAIN CHAIN

    ▪ Quality sourced chains to enhance perfromance and long life.

    ▪ Main chain drive with overload feature.

    ▪ High tensile chains for strength and wear resistance.

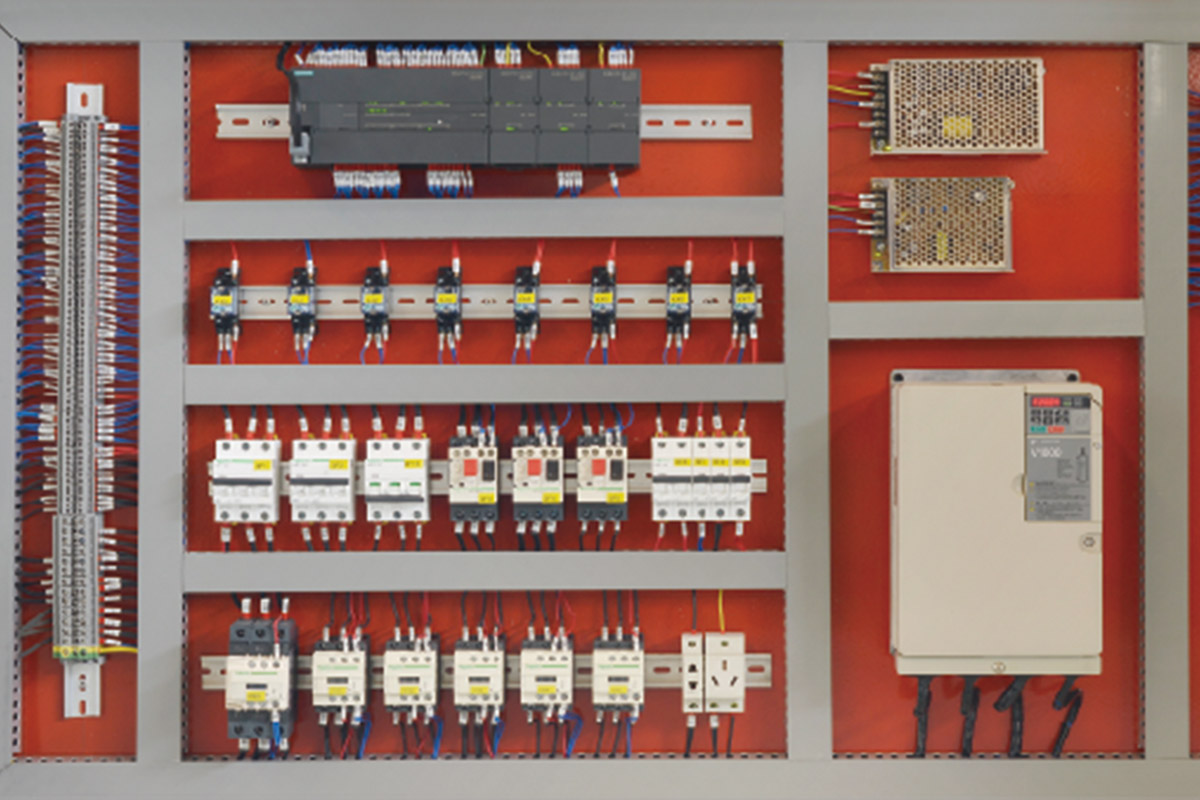

    ELECTRICAL CONTROL PART

    ▪ PLC control, safe and reliable.

    ▪ Various safe guarding devices that will automatically stop the machine when there is any alarm happened.

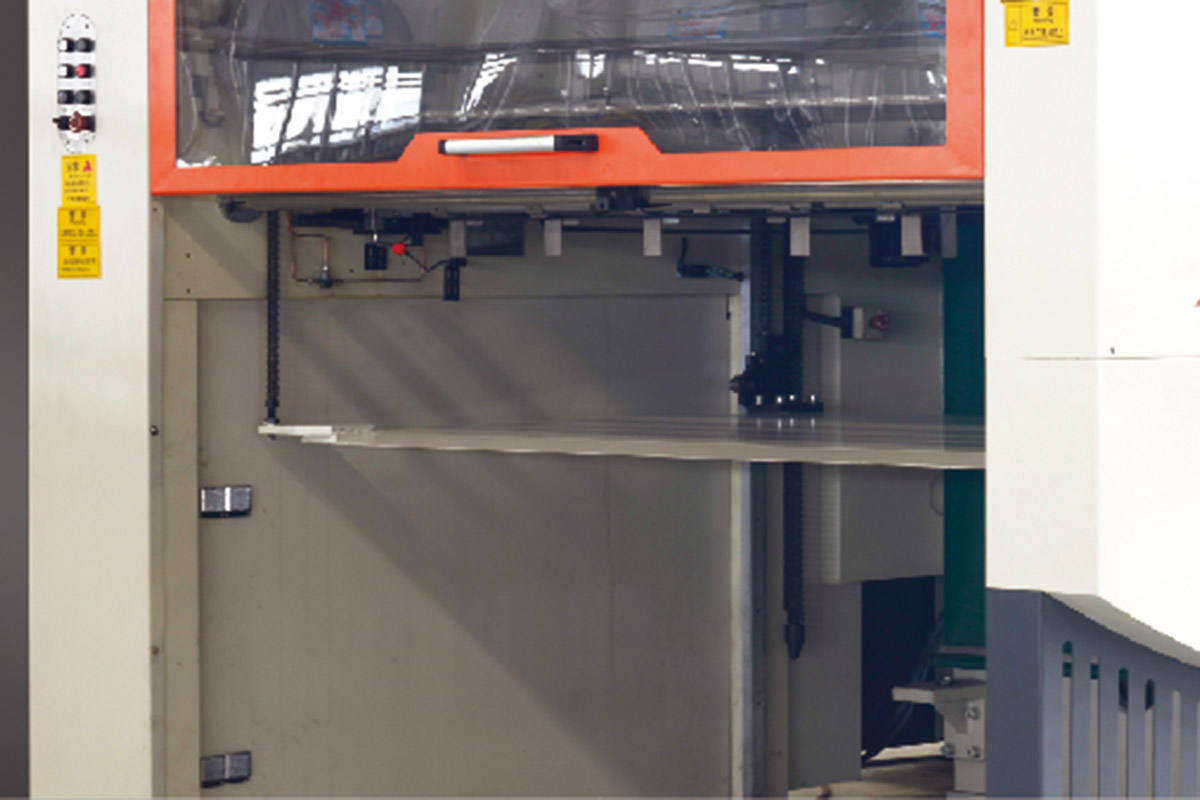

    DELIVERY SECTION

    ▪ Two options available, conventional pallet or moveable trolley.

    ▪ Continous collecting or batch counter collecting are available.

    01 / 05
    Parameters
    MWB-1300 MWB-1450 MWB-1620 MWB-1850 MWB-2100
    Max. Sheet Size
    1330×980mm
    Min. Sheet Size
    550×480mm
    Max. Cutting Size
    1300×960mm
    Max. Cutting Pressure
    250×10000N
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    4200s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1mm
    Min. Gripper Margin
    8mm
    Inner Chase Size
    1330×1004mm
    Collection Pile Height
    1100mm
    Main Motor Power
    11kw
    Total Power
    16.5kw
    Weight
    15000kgs
    Dimension
    6120×4530×2290mm
    Max. Sheet Size
    1480×1080mm
    Min. Sheet Size
    550×480mm
    Max. Cutting Size
    1450×1050mm
    Max. Cutting Pressure
    300×10000N
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    4000s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1mm
    Min. Gripper Margin
    8mm
    Inner Chase Size
    1480×1080mm
    Collection Pile Height
    1118mm
    Main Motor Power
    15kw
    Total Power
    20.5kw
    Weight
    17000kgs
    Dimension
    6330×4720×2340mm
    Max. Sheet Size
    1650×1210mm
    Min. Sheet Size
    650×550mm
    Max. Cutting Size
    1620×1190mm
    Max. Cutting Pressure
    300×10000N
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    3600s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1mm
    Min. Gripper Margin
    8mm
    Inner Chase Size
    1650×1220mm
    Collection Pile Height
    1140mm
    Main Motor Power
    15kw
    Total Power
    20.5kw
    Weight
    21000kgs
    Dimension
    6620×4920×2520mm
    Max. Sheet Size
    1880×1420mm
    Min. Sheet Size
    650×550mm
    Max. Cutting Size
    1850×1400mm
    Max. Cutting Pressure
    350×10000N
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    3200s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1mm
    Min. Gripper Margin
    8mm
    Inner Chase Size
    1880×1430mm
    Collection Pile Height
    1505mm
    Main Motor Power
    22kw
    Total Power
    24.6kw
    Weight
    26000kgs
    Dimension
    7580×5930×2764mm
    Max. Sheet Size
    2110×1520mm
    Max. Sheet Size
    650×550mm
    Max. Cutting Size
    2080×1500mm
    Max. Cutting Pressure
    400×10000N
    Stock Range
    ≥1mm, ≤8.5mm
    Cutting Precision
    ±0.5mm
    Max. Mechanical Speed
    3000s/h
    Cutting Rule Height
    23.8mm
    Pressure Adjust Range
    ±1mm
    Min. Gripper Margin
    8mm
    Inner Chase Size
    2110×1524mm
    Collection Pile Height
    1505mm
    Main Motor Power
    30kw
    Total Power
    32.6kw
    Weight
    32000kgs
    Dimension
    7760×6280×2830mm
