LS-900A
Double Lane Rigid Box Making Machine
Features

GENERAL FEATURES

▪ Double lane cover feeding + Visual positioning + Double corner paster + Double forming station.

▪ Double lane for different or same size of boxes simultaneously, single lane running mode available.

▪ Automated format set-up for forming system by inputting box dimensions.

▪ Speed up to 25 pairs/min (50pcs top + bottom).

Set-up time for one channel: 30 mins, for complete machine: 60 mins.

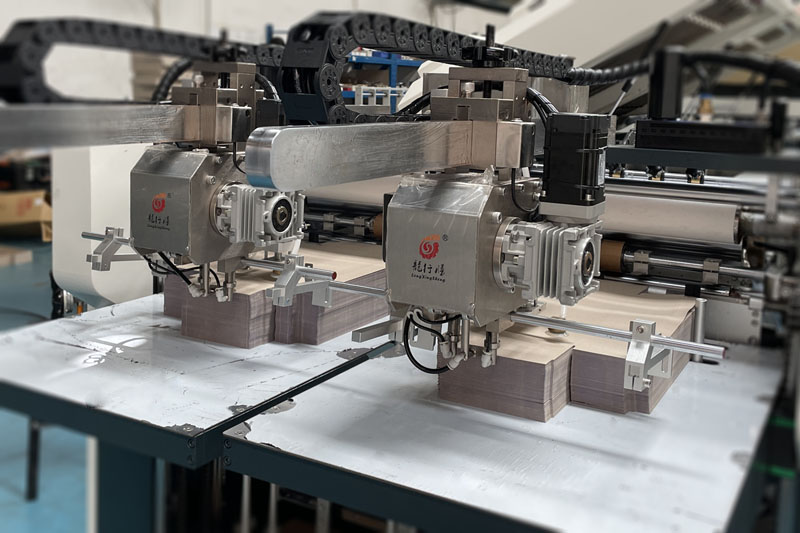

DOUBLE LANE FEEDING SECTION

▪ Double lane independent servo controlled feeder for different or same cover sizes and materials feeding simultaneously, single lane feeding is available.

▪ New design avoids double sheets, fast and stable performance.

GLUING SECTION

▪ Integrated gluing system with recycling design, easy to clean.

▪ High precision gluing volume adjustment.

▪ Automatic glue viscosity detection and control system equipped as standard.

▪ Additional cold glue pump equipped.

VISUAL POSITIONING SYSTEM

▪ Imported 10Mega Pixel cameras.

▪ Unique visual positioning system, no need to move cameras for size changing after calibration at beginning.

▪ Easy to operate the software to set up the positioning section within 10 min.

▪ Templates can be saved for repeat jobs.

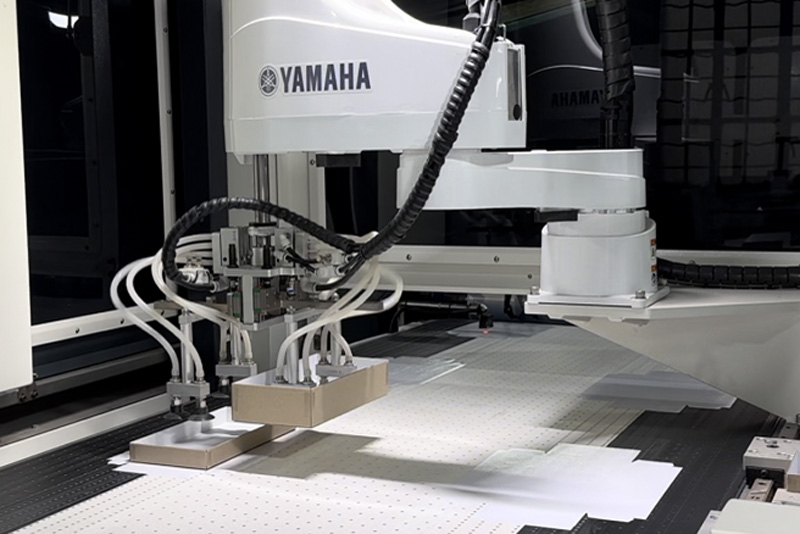

ROBOTIC ARM

▪ Double lane positioning for different or same size of boxes simultaneously, single lane running is available.

YAMAHA brand high precision robotic arm assures the working accuracy ±0.1mm.

▪ Robotic arm action driven by data from software, which is dynamically matching each cover sheet position under cameras.

Memory function for repeat jobs.

AUTOMATIC CORNER PASTING

▪ Two units make top & bottom at the same time.

▪ Non-stop cardboard feeding: equipped with 2 table plates to load the cardboard.

▪ Dural guider rails assure stable running.

▪ Integrate tape feeding device, avoid tape block.

▪ Available for plastic tape, paper tape and kraft tape.

▪ Screwed teeth gears driving the mold at high speed performance up to 60pcs/hour.

DOUBLE FORMING SECTION

▪ Storage(memory) function for size setting.

▪ Automated set-up by inputting box dimensions on touch screen.

▪ Lift-up type box holding mechanism to prevent scratch of box bottom.

▪ No need to change tuck-in blade and air pressing plate.

▪ Working speed: up to 25pairs/min (50pcs/min).

01 / 07
Parameters
Max. Paper Size (L*W)
650*400mm
Min. Paper Size (L*W)
130*120mm
Max. Cardboard Size (L*W)
580*380mm
Finished box size
L:80-400mm, W:60-300mm, H:15-100 mm
Paper Thickness
100-350gsm
Cardboard Thickness
0.8-3mm
Turn-in Depth (R)
15-80mm
Edge Folding Size
10-90mm
Working Speed
12-25 pair/min / 24-50 pcs/min
Motor Power
25kw/380V 3P
Heating Power
8kw
Air Pressure
40L/min 0.8 Mpa
Total Weight
6600 kgs
Dimension (L*W*H)
6400*6250*3250mm
