    Home > Solutions > Book Finishing Machines > HS-568-8T / 15T / 30T

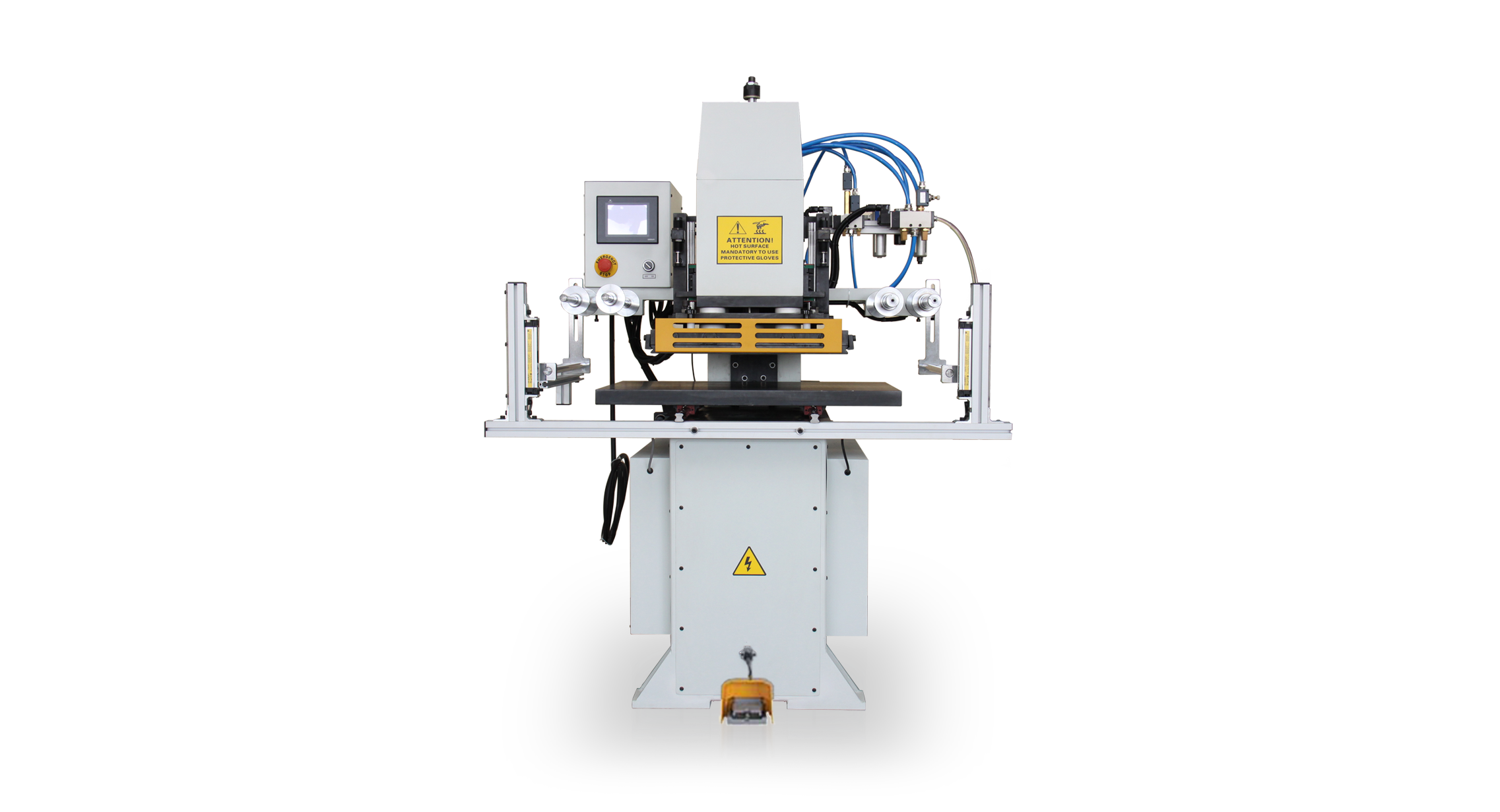

    HS-568-8T / 15T / 30T
    Hot-foil Stamping Machine
    Get Price Brochure
    Parameters
    HS-568-8T HS-568-15T HS-568-30T
    Max. Pressure
    8tons pneumatic pressure
    Max. Stamping Area
    510x390mm
    Max. Cutting Area
    490x370mm
    Worktable Area
    780x490mm
    Max. Working Height
    100mm
    Workable Stroke
    200mm
    Temperature
    0℃~300℃
    Air Supply
    0.8~1.2mpa
    Power
    4800w
    Weight
    900kgs
    Dimension
    1120x890x1940mm
    Max. Pressure
    15tons pneumatic pressure
    Max. Stamping Area
    590x440mm
    Max. Cutting Area
    570x420mm
    Worktable Area
    880x540mm
    Max. Working Height
    100mm
    Workable Stroke
    200mm
    Temperature
    0℃~300℃
    Air Supply
    0.8~1.2mpa
    Power
    5800w
    Weight
    1200kgs
    Dimension
    1200x960x1990mm
    Max. Pressure
    30tons pneumatic pressure
    Max. Stamping Area
    780x540mm
    Max. Cutting Area
    760x520mm
    Worktable Area
    980x640mm
    Max. Working Height
    100mm
    Workable Stroke
    250mm
    Temperature
    0℃~300℃
    Air Supply
    0.8~1.2mpa
    Power
    7800w
    Weight
    1600kgs
    Dimension
    1440x1330x2010mm
