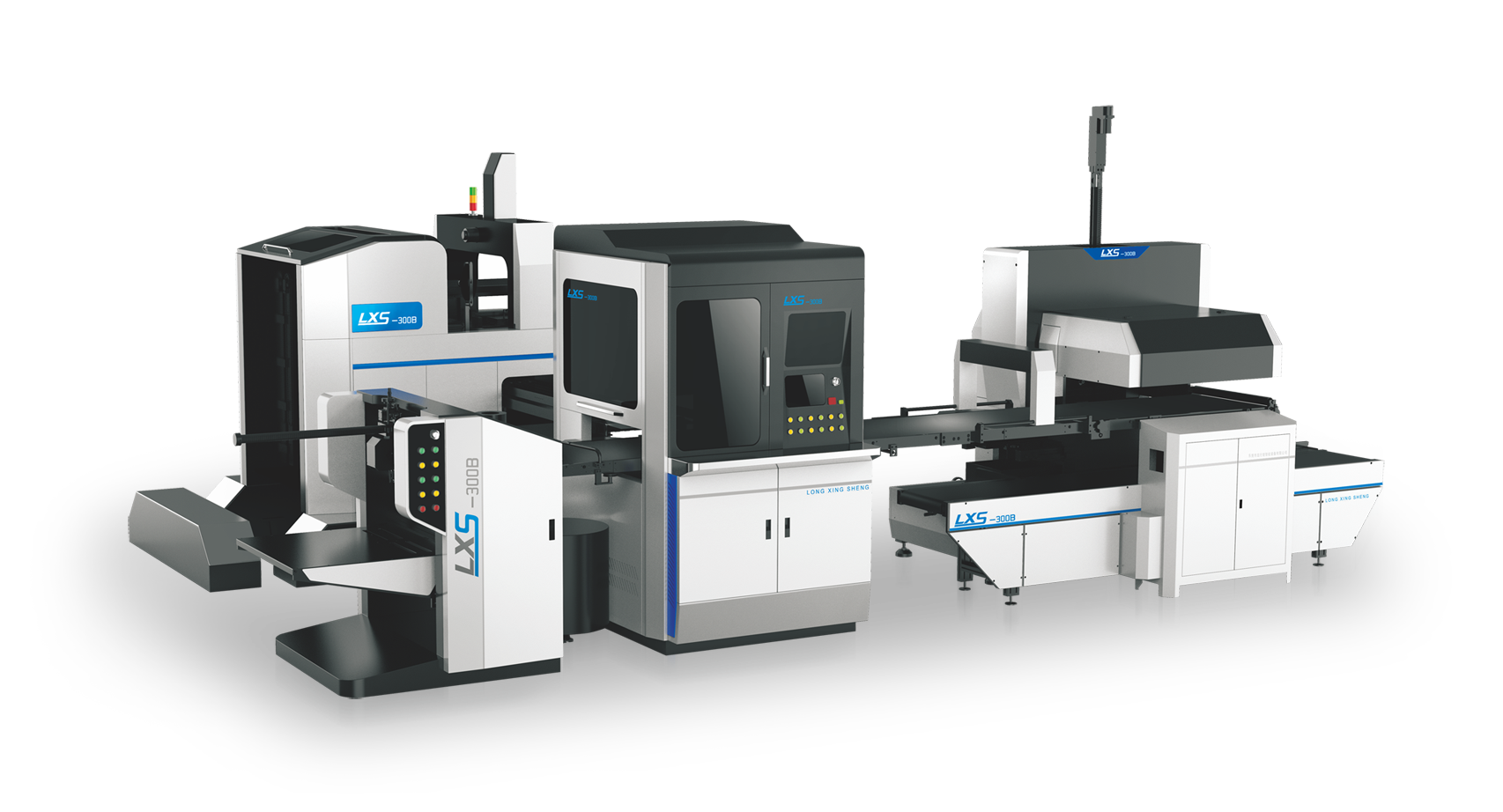

LS-300B
Automatic Rigid Box Making Machine
Features

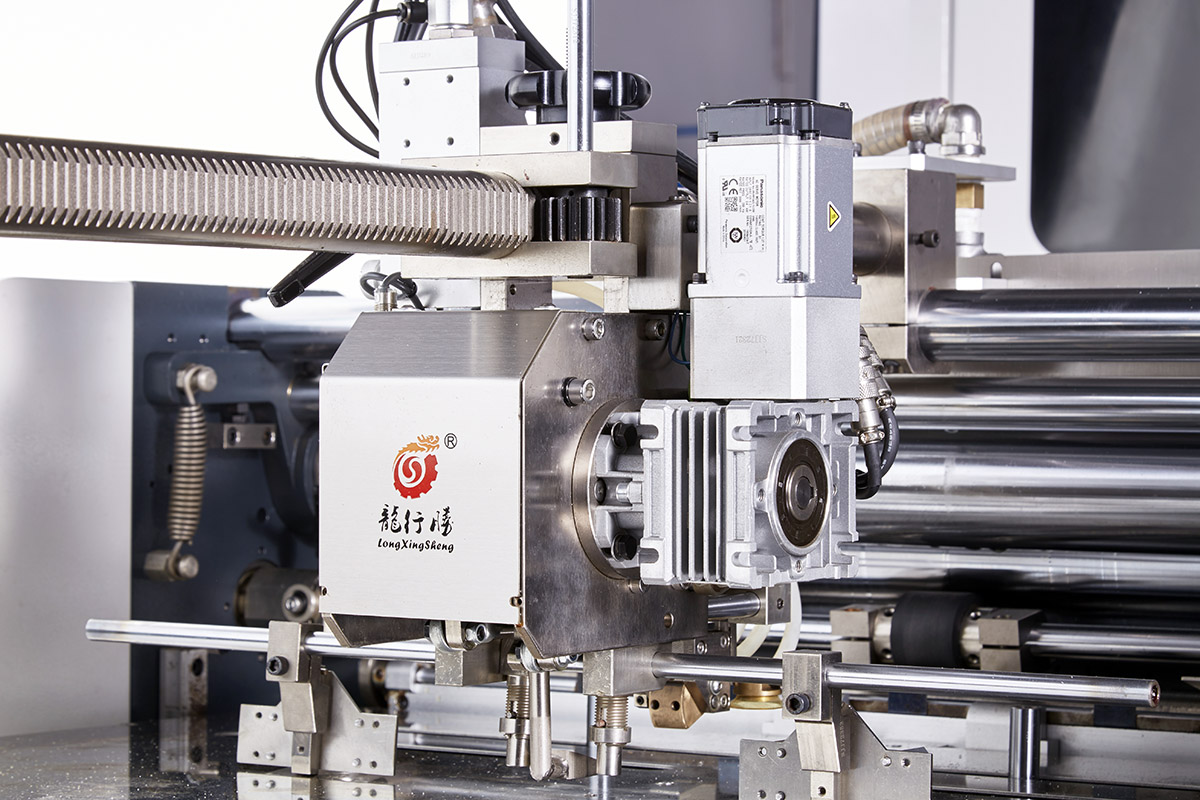

FEEDING SECTION

▪ Servo-motor independent driven feeding head, accurate feeding for various covering materials.

▪ New design avoids double sheets, fast and stable performance.

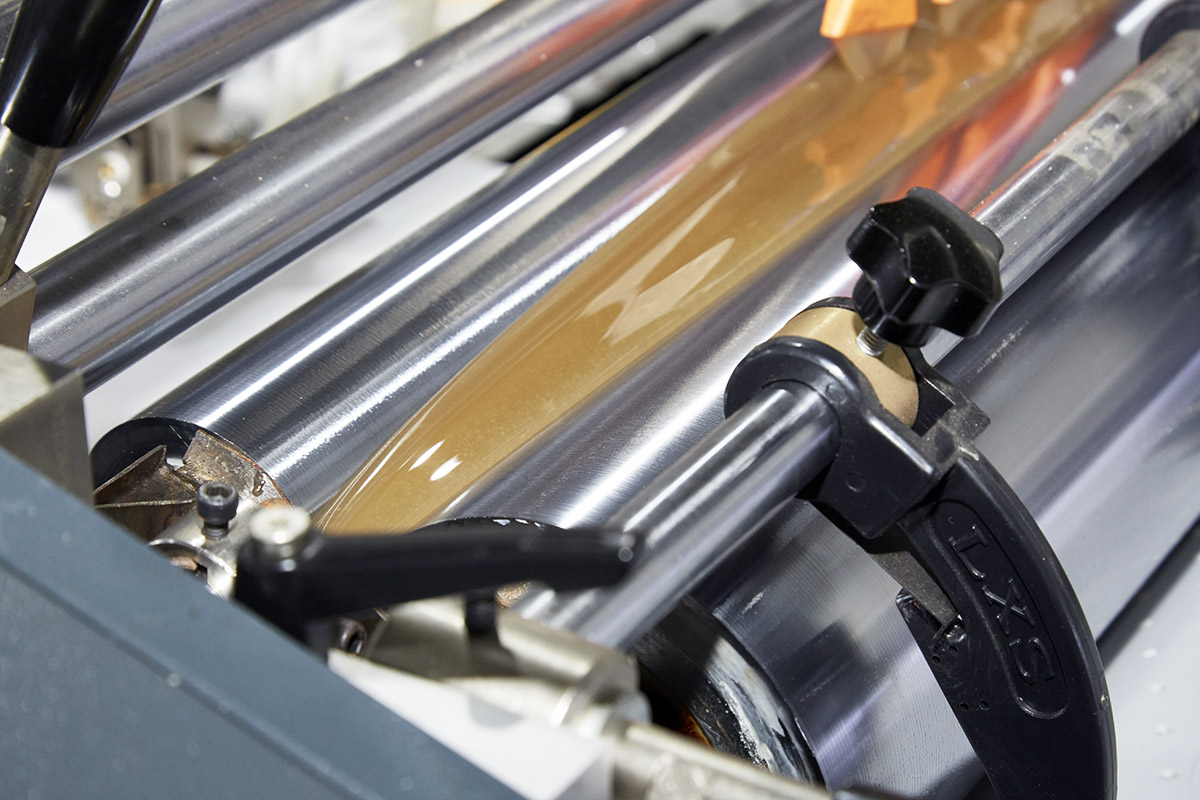

GLUING SECTION

▪ Integrate gluing system with recycling design, easy to clean.

▪ High precision gluing volume adjustment.

▪ Automatic glue viscosity detection and control system is optional.

VISUAL POSITIONING SYSTEM

▪ Imported 10Mega Pixel cameras

▪ Unique visual positioning system, no need to move cameras for size changing after calibration at beginning.

▪ Easy to operate the software to set up the positioning section within 10 min.

▪ Templates can be saved for repeat jobs.

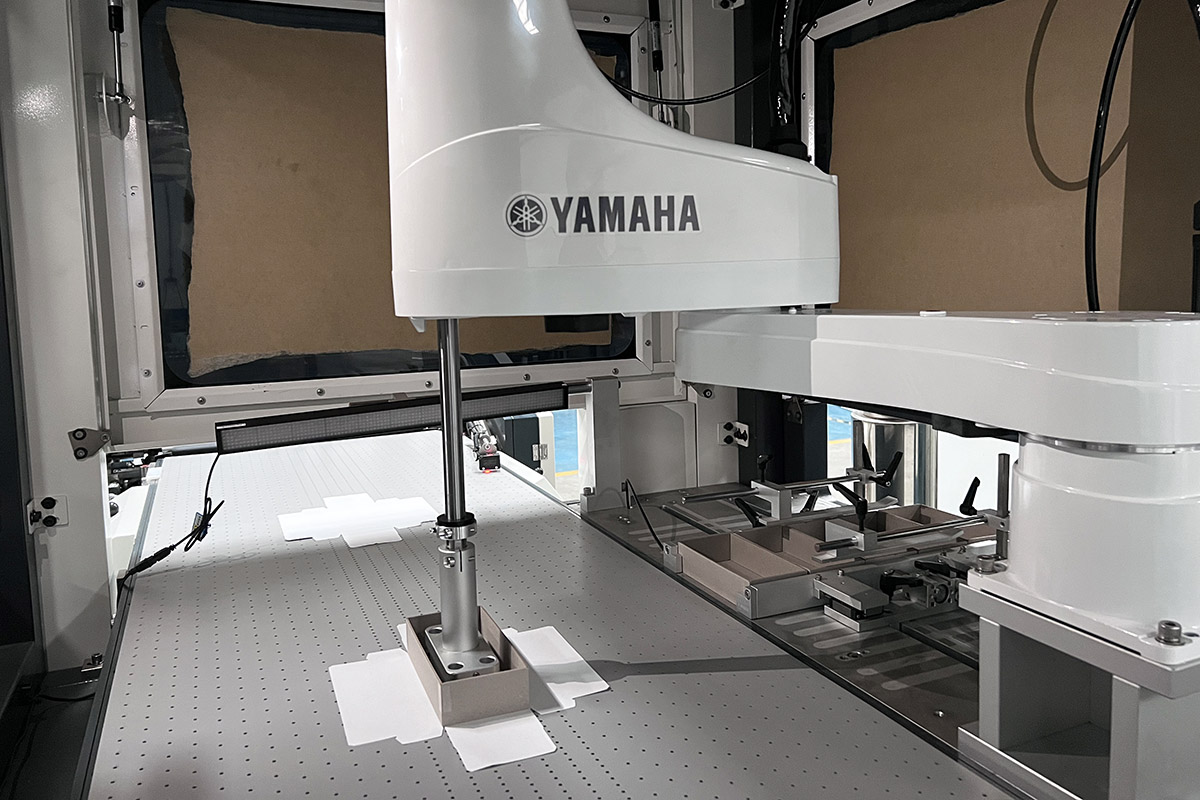

ROBOTIC ARM

▪ YAMAHA brand high precision robotic arm assures the working accuracy ±0.1mm.

▪ Robotic arm action driven by data from software, which is dynamically matching each cover sheet position under cameras.

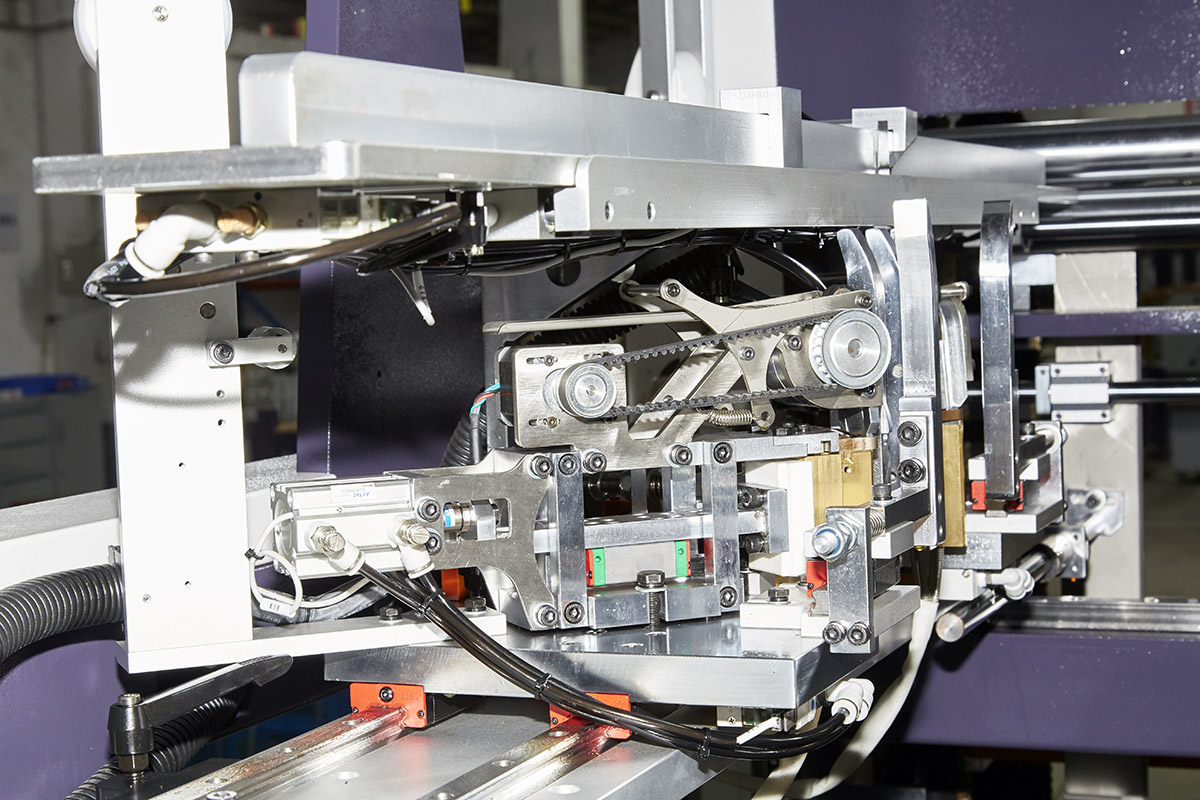

AUTOMATIC CORNER PASTING

▪ Non-stop cardboard feeding.

▪ Dural guider rails assure stable running.

▪ Integrate tape feeding device, avoid tape block.

▪ Screwed teeth gears driving the mold at high speed performance up to 60pcs/hour.

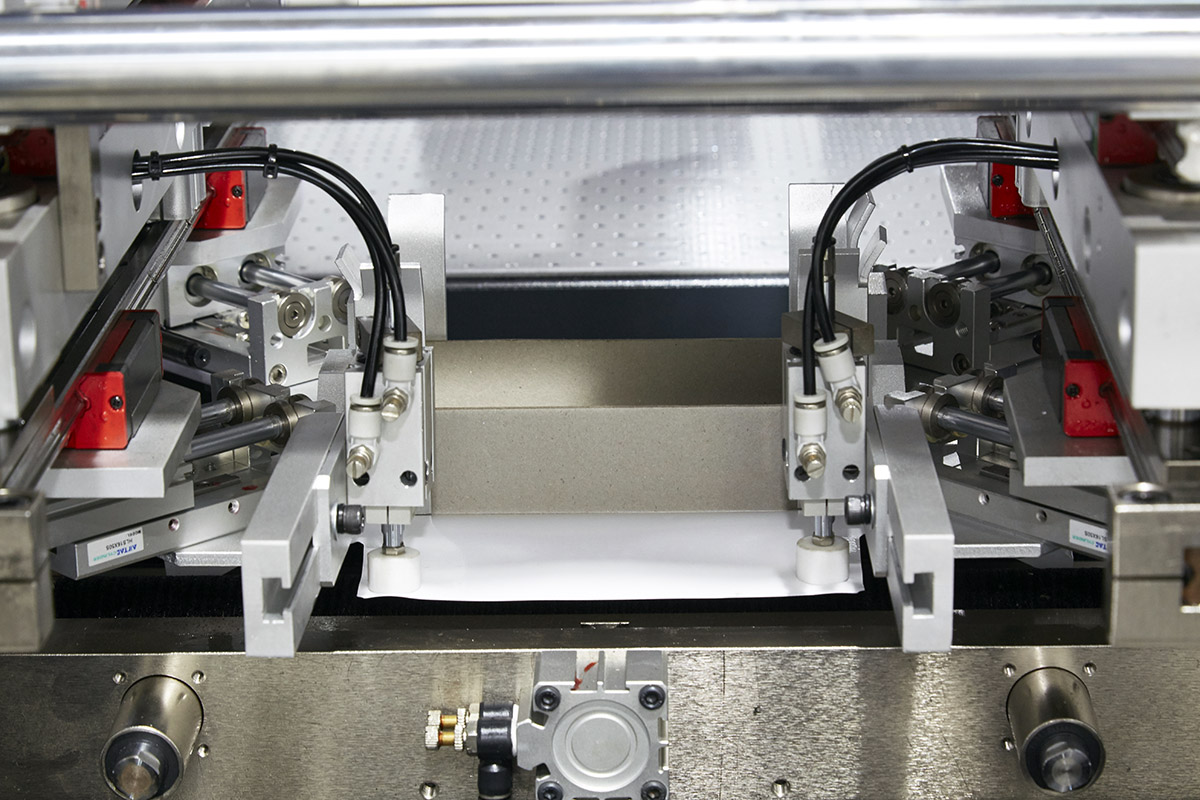

DOUBLE FORMING SECTION

▪ Double forming stations make double box forming and air pressing action at two side, ensures high speed production.

▪ Max. speed up to 35pcs/min.


01 / 06
Parameters
Max. Sheet Size(L*W)
800×600mm
Max. Sheet Size(L*W)
135×100mm
Max. Cardboard Size(L*W)
760×560mm
Min. Cardboard Size(L*W)
120×100mm
Finished Box Size(L*W*H)
Max. 400×300×100mm, Min. 80×60×15mm
Paper Thickness
80-350g/㎡
Cardboard Thickness
0.8-3mm
Turn-in Depth(R)
15-80mm
Edge Folding Size
10-100mm
Working Speed
15-35pcs/min
Motor Power
14kw
Heating Power
8kw
Air Pressure
40L/min 0.8MPa
Weight
3750kgs
Dimension
6600×3500×3000mm
