    Home > Solutions > Hot-foil Stamping Machine > TYMC-1400 / 1500

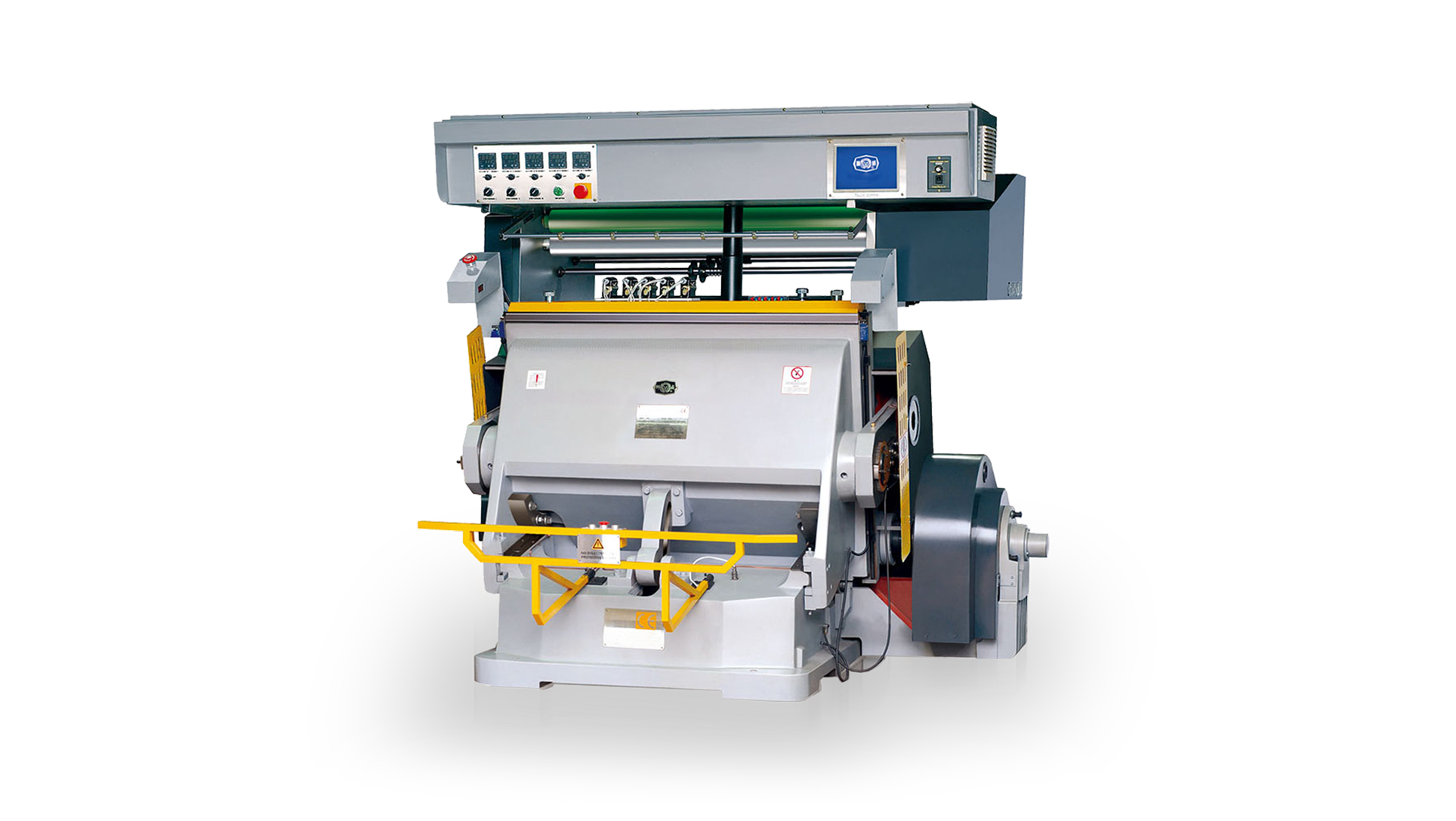

    TYMC-1400 / 1500
    Hot-foil Stamping & Die Cutting Machine
    Get Price Brochure
    Parameters
    TYMC-1400 TYMC-1500
    Max. Inside Chase Size
    1400×1000mm
    Max. Stamping Size
    1400×1000mm
    Max. Working Speed
    1380sheets/hour
    Skip Range
    0~99
    Foil Delivery Length
    1000mm
    Foil Delivery Group
    3groups
    Adjustable Temperature
    10~300℃
    Individual Heating Zones
    5zones
    Power
    28.5kw
    Weight
    7500kgs
    Dimension
    2450×2050×2200mm
    Max. Inside Chase Size
    1500×1060mm
    Max. Stamping Size
    1500×1060mm
    Max. Working Speed
    1380sheets/hour
    Skip Range
    0~99
    Foil Delivery Length
    1060mm
    Foil Delivery Group
    3groups
    Adjustable Temperature
    10~300℃
    Individual Heating Zones
    5zones
    Power
    32kw
    Weight
    7500kgs
    Dimension
    2540×2050×2200mm
