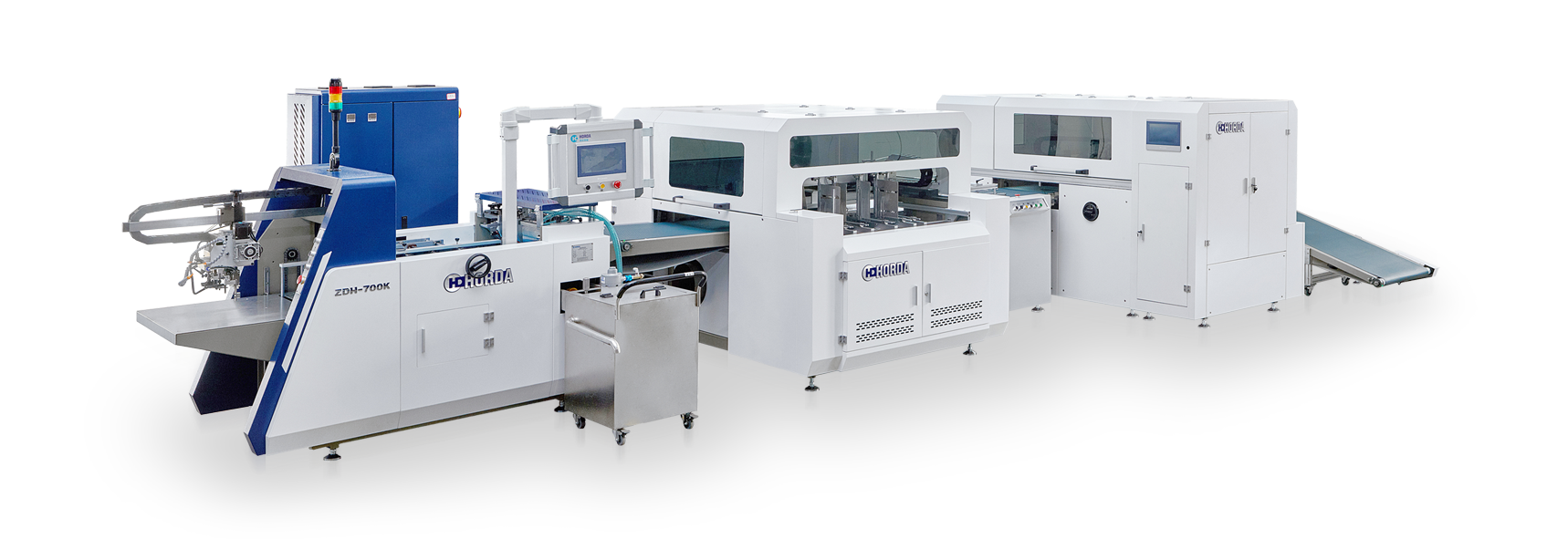

ZDH-700

Collapsible Box Wings Making Machine

Features

General Features

▪ Collapsible box wing with 3pcs or 5pcs boards can be both finished by one pass on this machine.

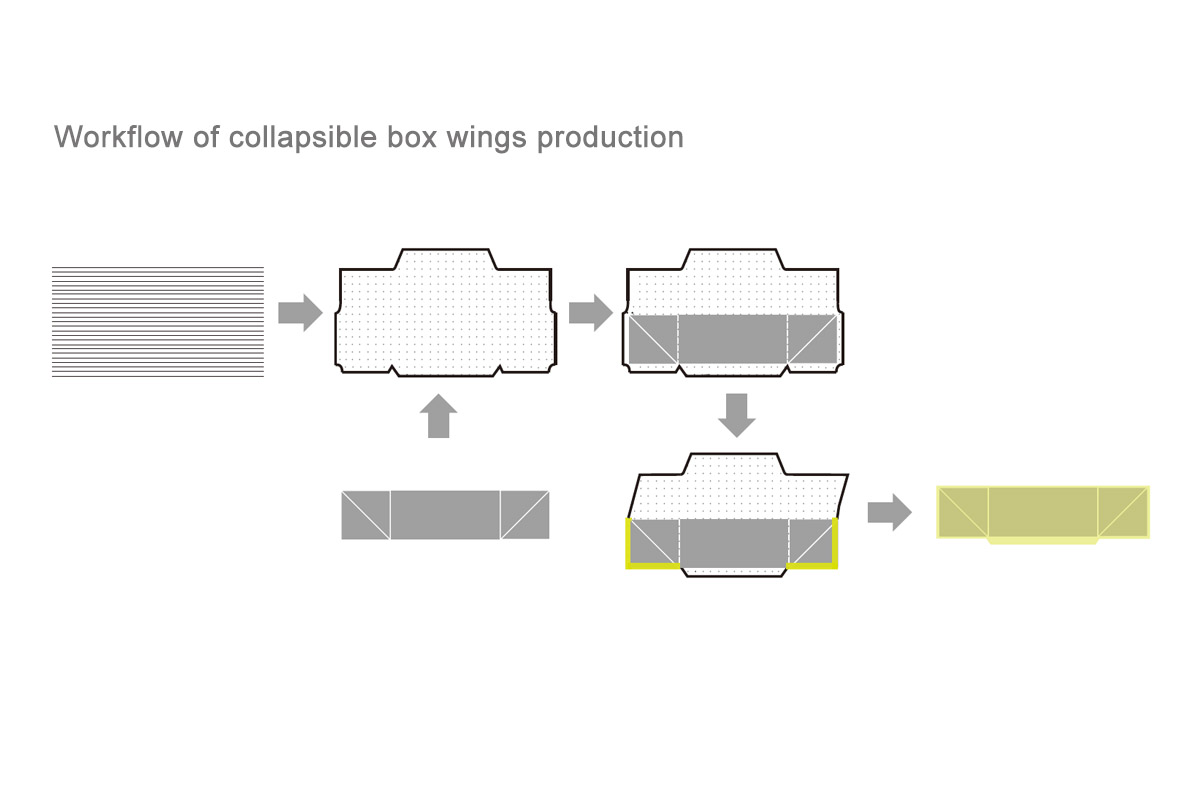

▪ Automatic paper feeding, gluing, board feeding, positioning and folding.

▪ Optical sensors detect and servo-controlled board positioning ensures high accuracy up to ±0.25 mm.

▪ 80% space saving, avoid deform or damage for collapsible box during transportation.

01 / 01

Parameters

ZDH-700

Max. Sheet Size

180mmx700mm

Min. Sheet Size

55mmx200mm

Middle Board Thickness

1.0-3.0mm

Side Board Thickness

0.5-2.0mm

Paper Weight

100-200gsm

Speed

15-25units/min

Position Accuracy

±0.25mm

Power

20kw

Weight

3500kgs

Dimension

7400x2500x1500mm
