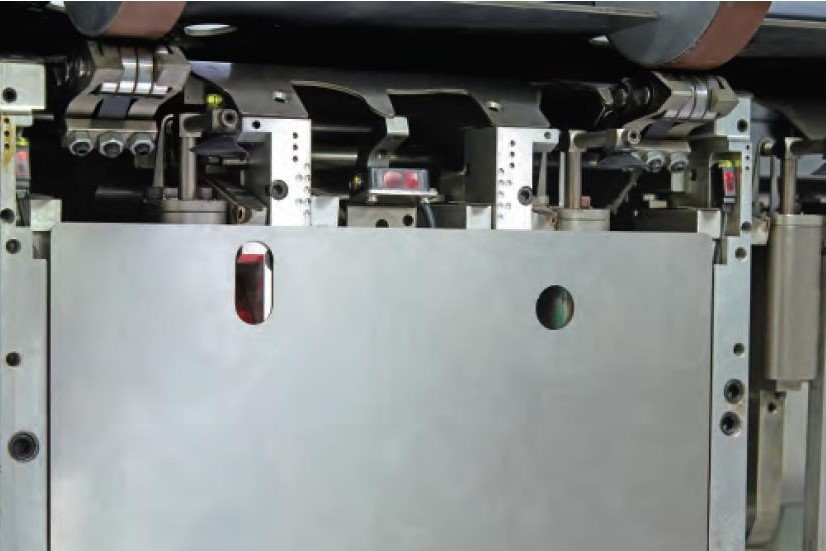

Front-top Suction Feeder

▪ Both top and bottom sheets are equipped with such design feeder heads.

▪ No need for extra adjustment for sheet size changeover.

▪ Max. top sheet feeding pile height: 1790mm

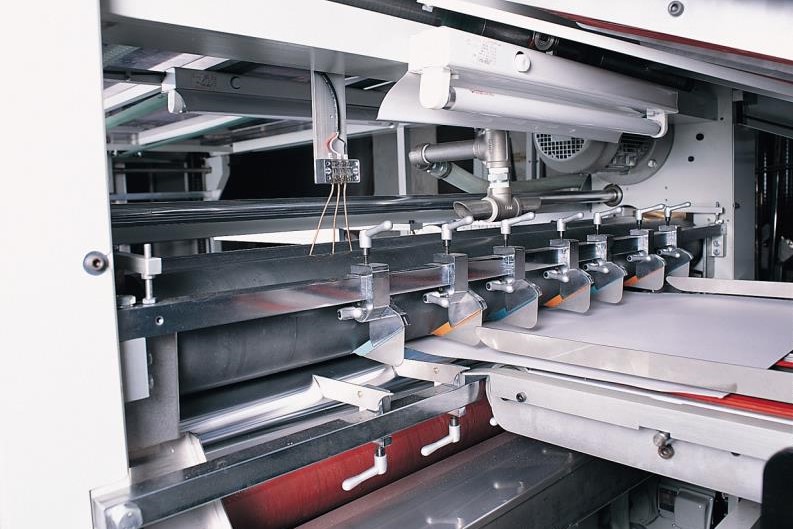

Gluing Section

▪ The precision of the upper glue roller with a minimum coating thickness of 0.02mm.

▪ Three sensors to control the glue level automatically.

▪ No overflow with delicate side glue stoppers at high speed and glue re-circulation system.

▪ Paper releaser: releasing the paper from the coating roller smoothly.

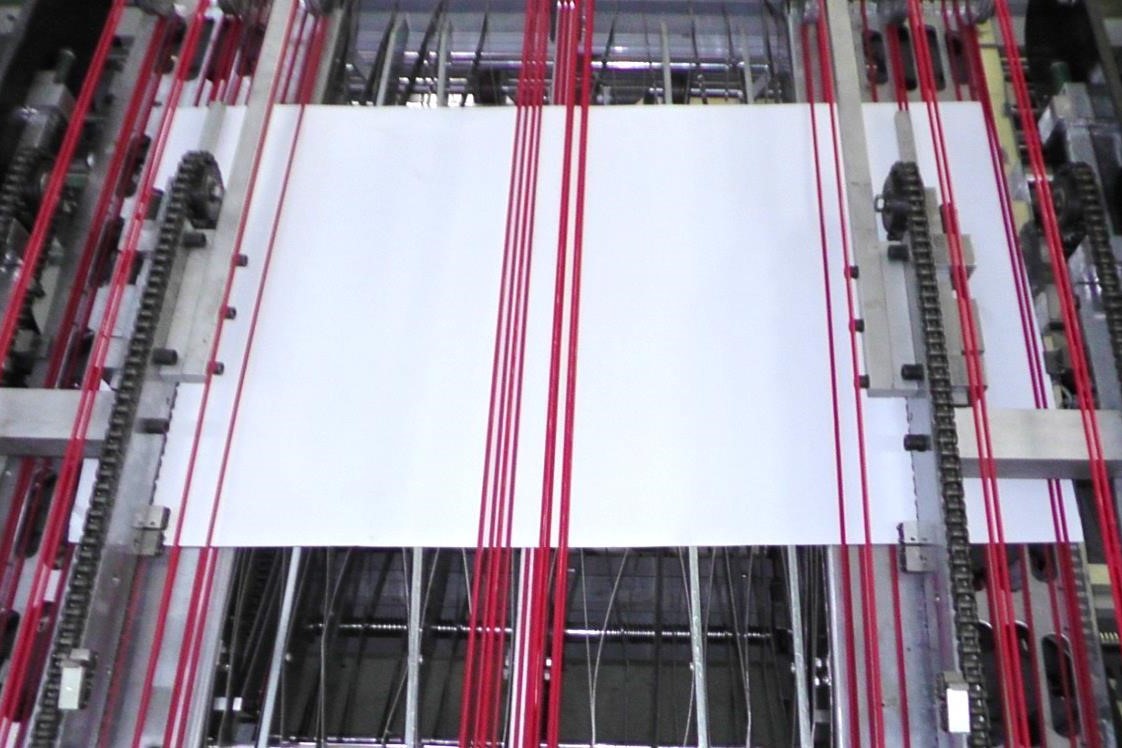

Unique Dynamic Aligning System

▪ The speed difference between faster paper transport and front stopper moving advances the paper to reach the front stopper for the front register.

▪ Paper sides are aligned synchronously with side stoppers to ensure the upper and lower paper is aligned and laminated perfectly.

▪ Precision within 0.5mm is guaranteed at high-speed performance.

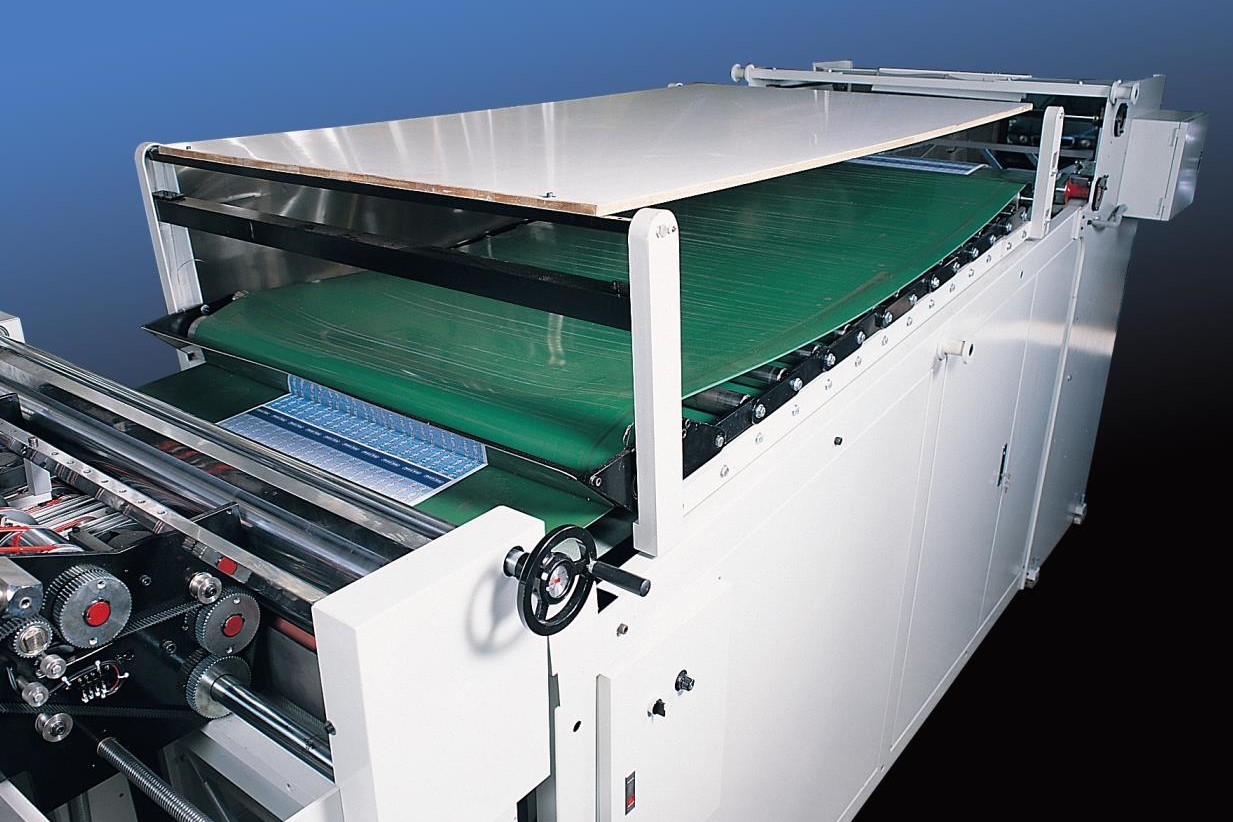

Compression Conveyor

▪ Motorized length setting for easy paper size changeover.

▪ Press laminated sheets in overlapping or speed up for sheets pressed individually.

▪ Extra rollers apply repeated heavy pressure to make the finished sheets smoother and more perfect.

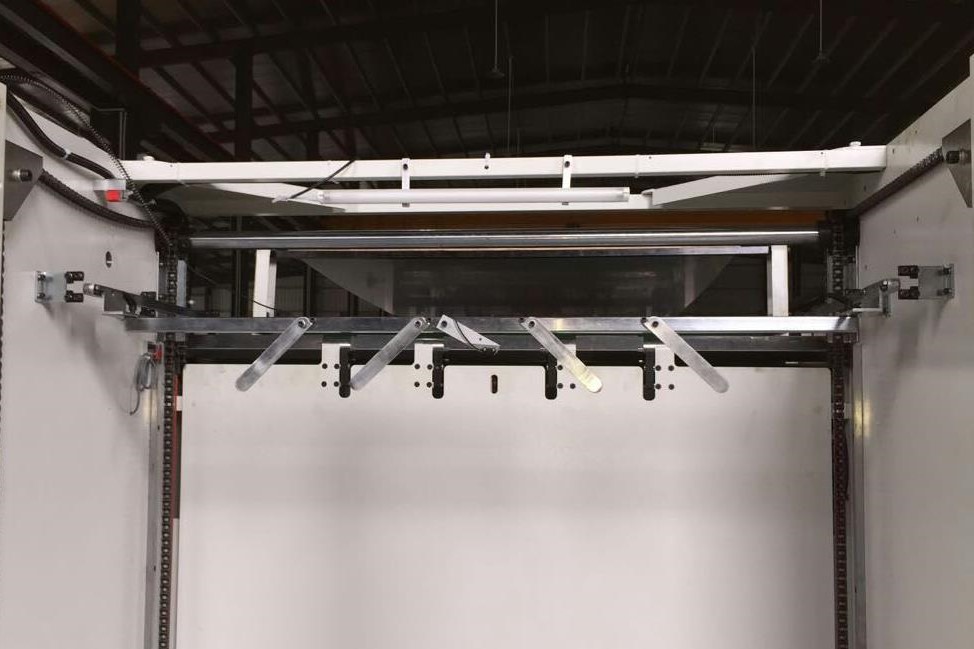

Delivery Section

▪ Vibration-loose collecting mechanism: capable of loosening laminated sheets and pushing neatly to ensure smooth collection.
