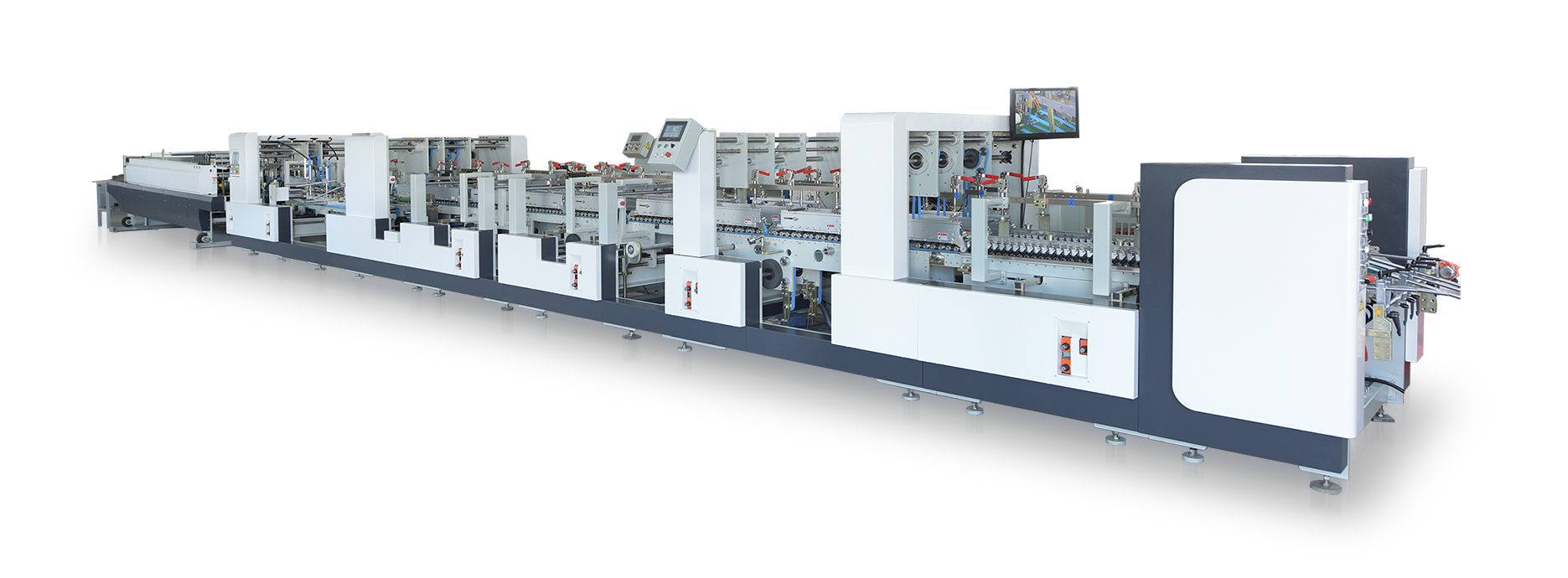

Automatic Folder Gluer SQ-850PC-R / SQ-1100PC-R

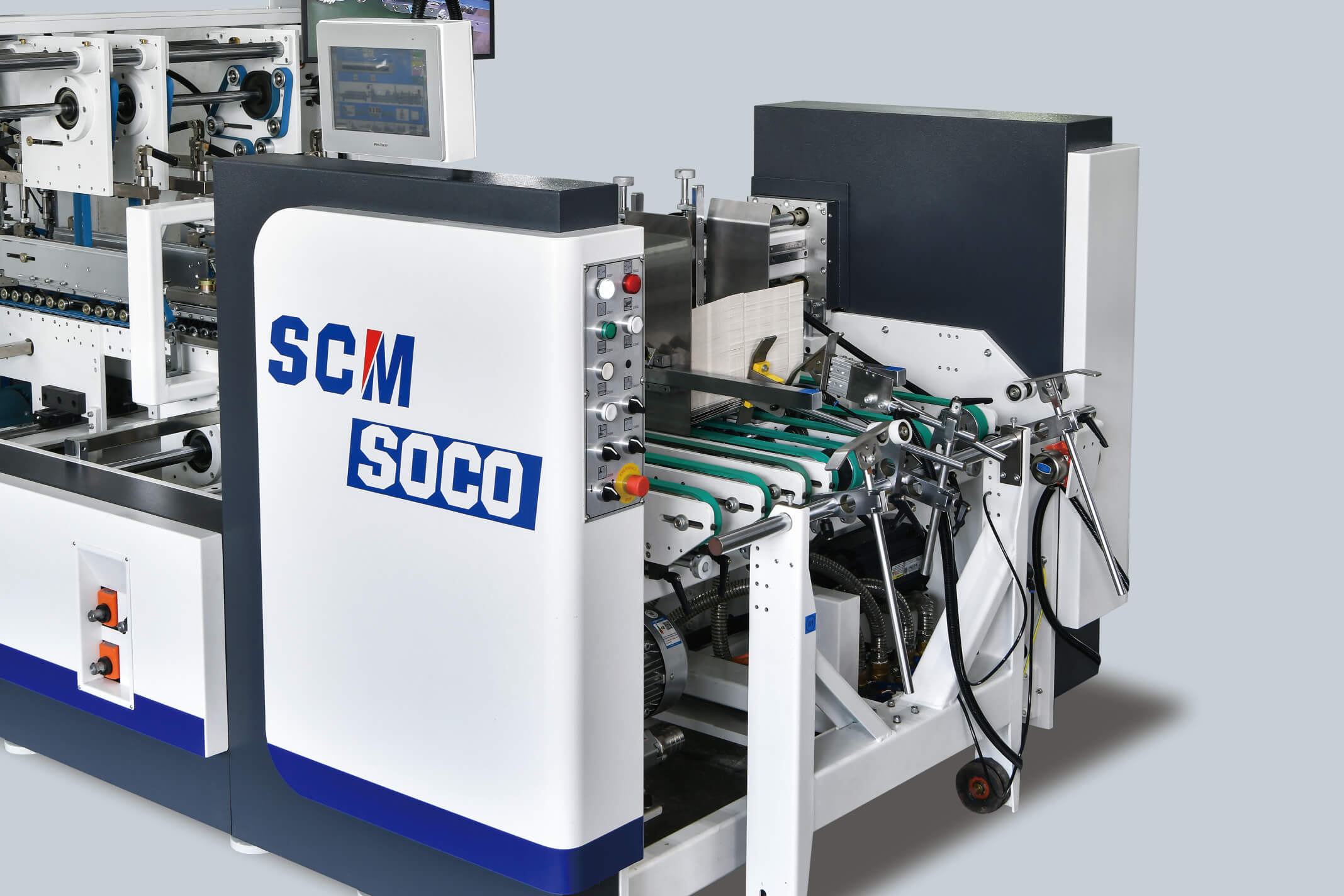

FEEDING SECTION

▪ Independent variable-frequency motor driven belts for stable feeding and accurate blank spacing.

▪ Pile vibrator equipped as standard.

▪ Belt-clean brush for each carrier.

▪ Remote controller for feeder start/stop and speed adjustment.

▪ 8pcs feeding belts, including 4pcs vacuum- assisted feeding belts, resulting in the reliable intake of almost kinds of blanks.

▪ Pneumatic lifter of feeding gates and side guides for easy operation.

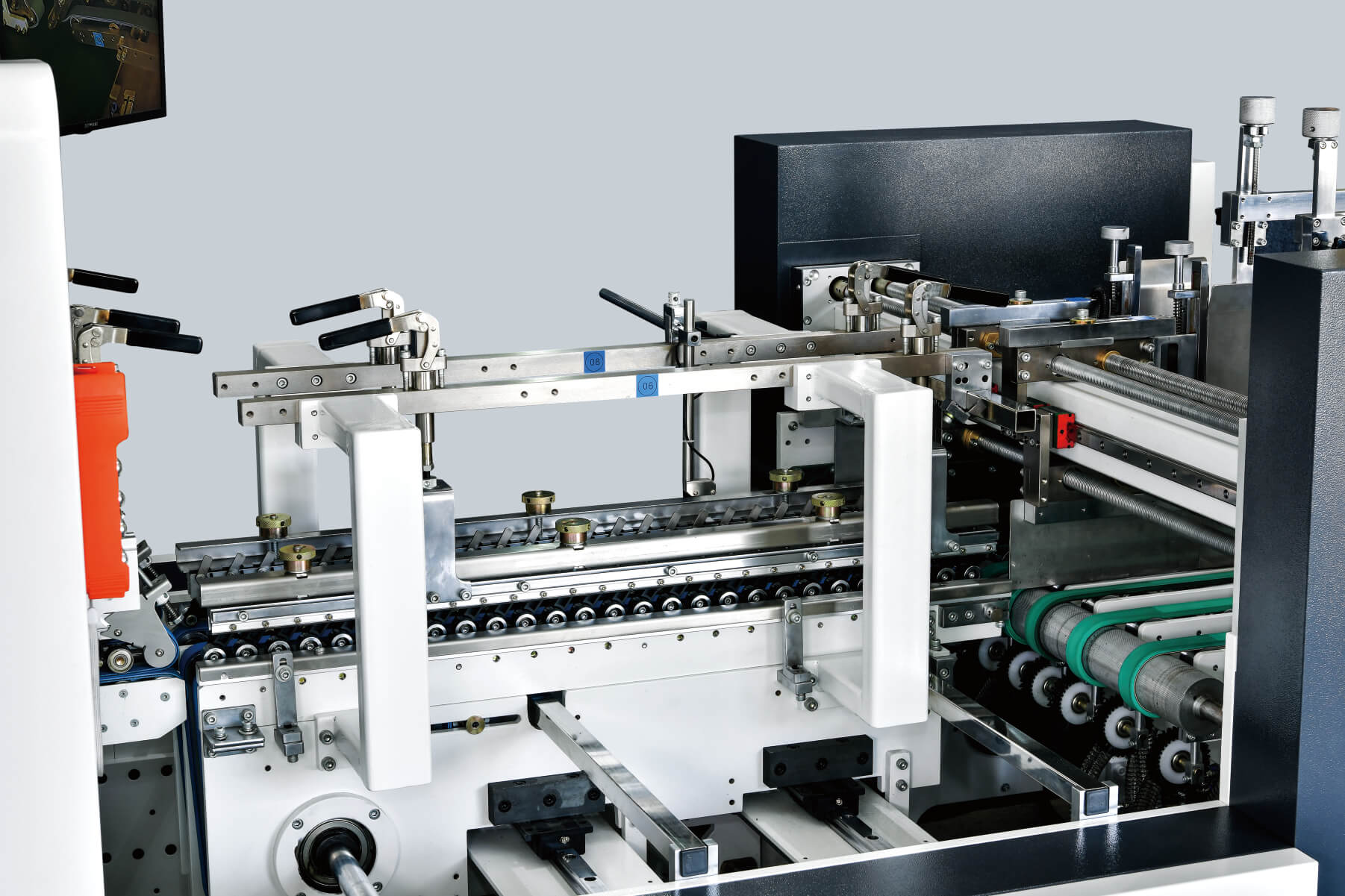

ALIGNMENT SECTION

▪ Three lanes carriers construction. Equipped with 2 upper alignment carriers and 1 center upper belt carrier.

▪ The positions of 3 lanes carries are driven by motors.

▪ Can be easily converted to left or right side for registration.

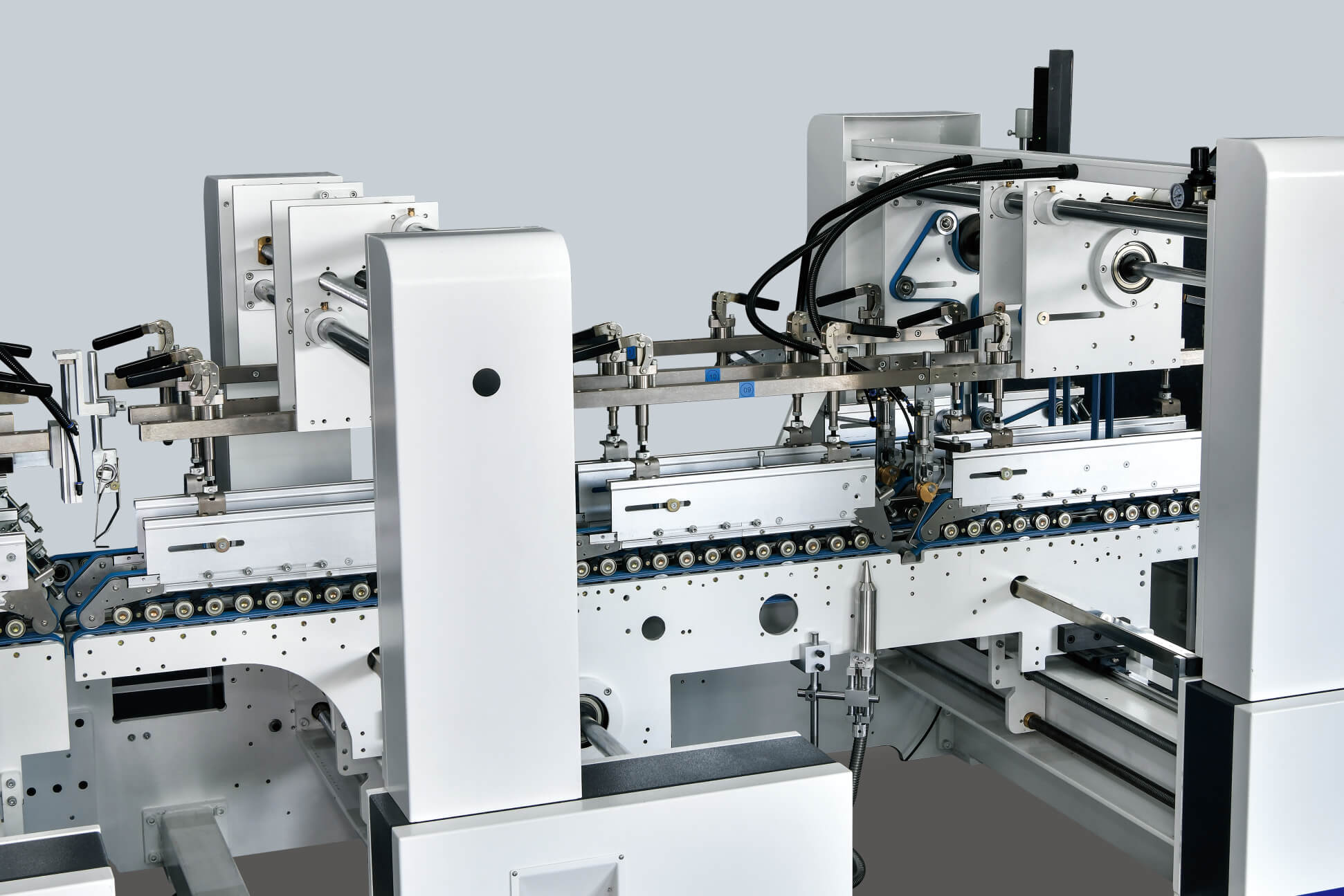

PRE-FOLDING SECTION

▪ Three lanes carrier construction with upper carrier belts transmission system, assure much stable running of thick board or corrugated board.

▪ The positions of 3 lanes carries are driven by motors.

▪ The pre-breaking sword for 1st creasing by 180°.

▪ The belt pre-breaking device for 3rd creasing line by 135°.

▪ Perfect pre-breaking ensure accurate and reliable opening of the finished products in the auto-erection package lines.

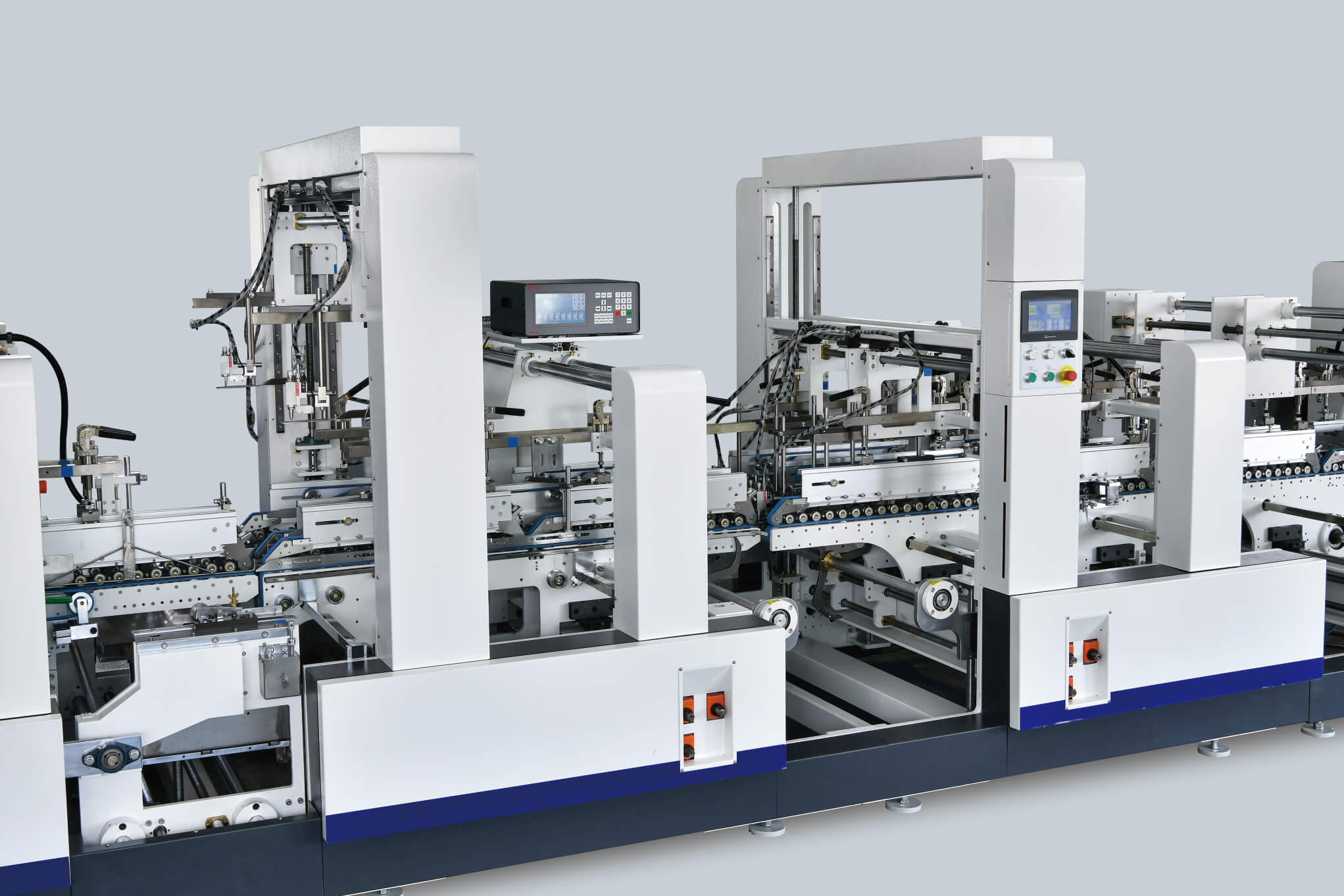

LOCK-BOTTOM SECTION

▪ Three lanes carrier construction with upper carrier belts transmission system. 2 split carriers for left and right lanes; 1 complete carrier for center lane.

▪ The positions of 3 lanes carries are driven by motors.

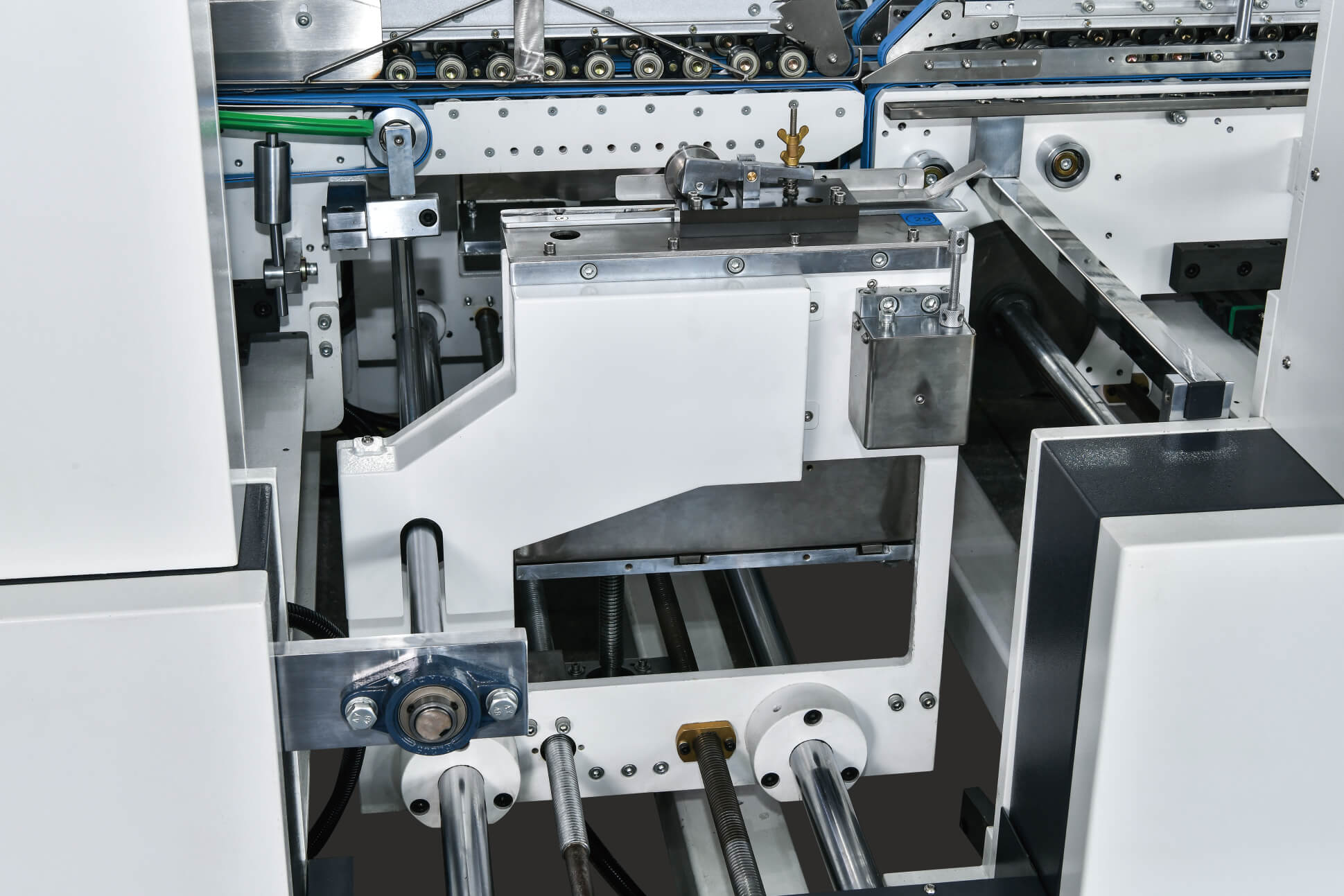

LOWER GLUING SECTION

▪ Lower gluing tank in both left and right side.

▪ Gluing disc width: 4.5mm

▪ Accurate volume control avoids the glue splash at high speed.

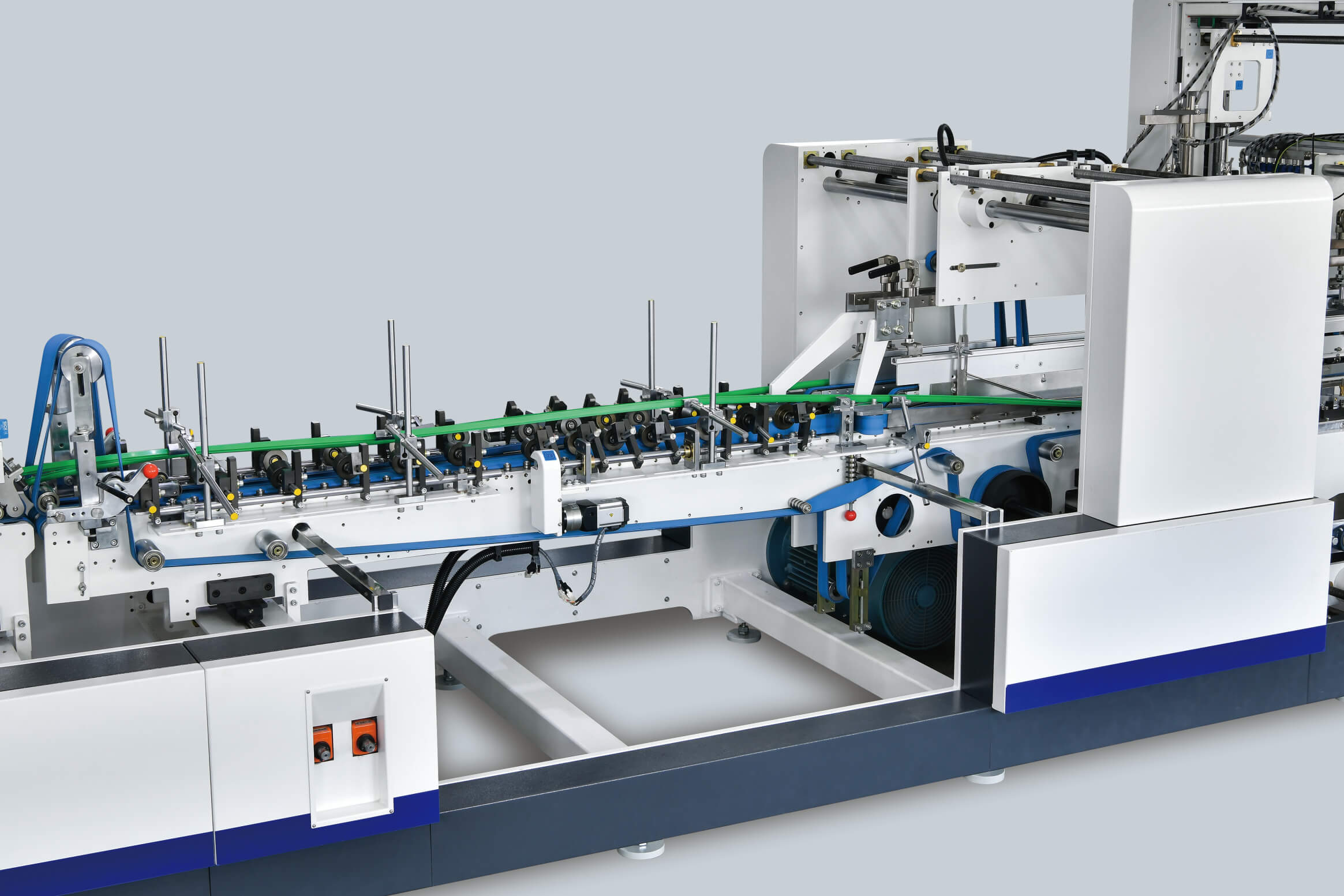

FINAL FOLDING SECTION

▪ Three lanes carrier construction with upper carrier belts transmission system, assure much stable running of thick board or corrugated board.

▪ The positions of 3 lanes carries are driven by motors.

▪ Speed of left and right folding belts can be adjusted mechanically.

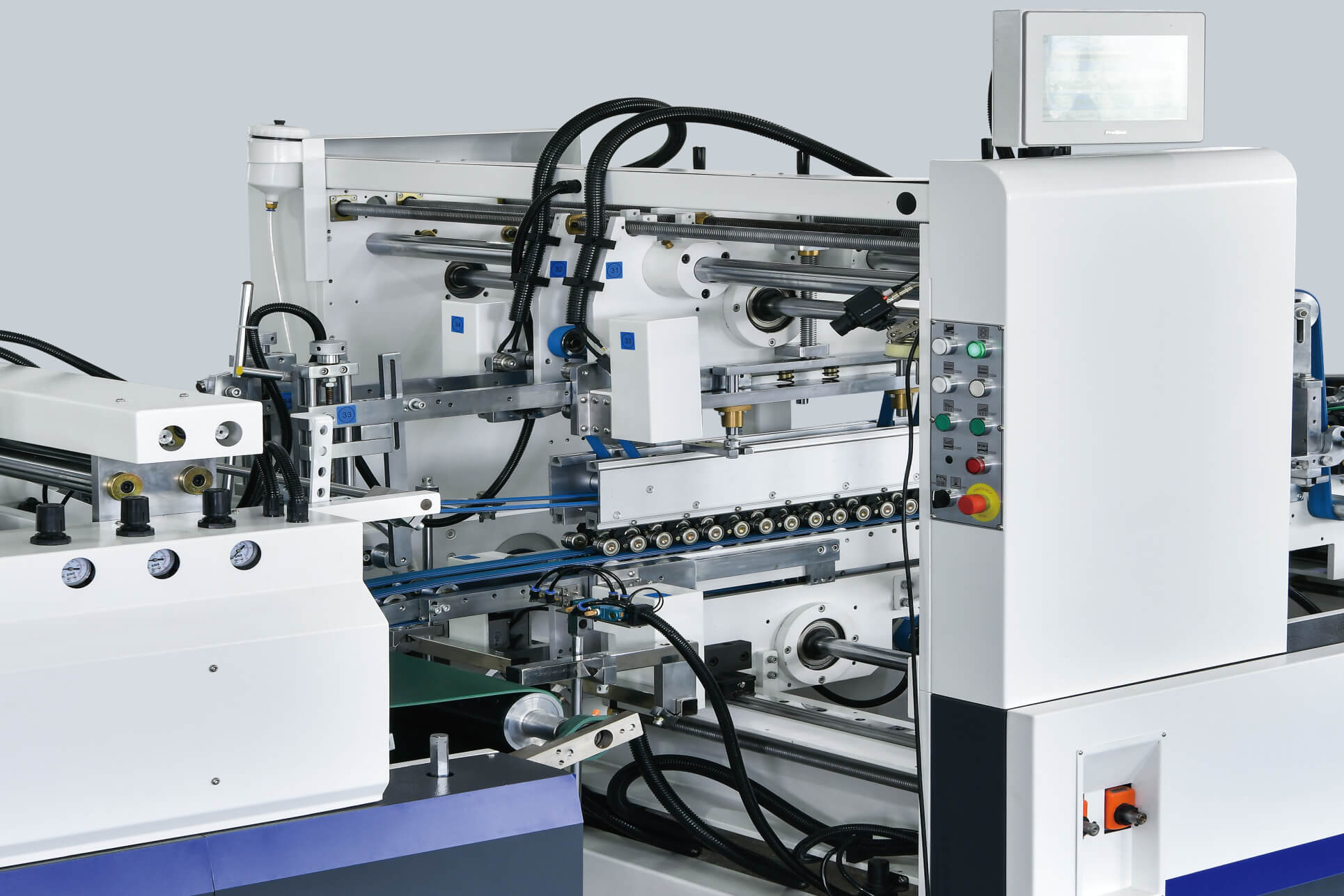

TRANSFER SECTION

▪ Main control panel with touch screen.

▪ Two lanes carriers construction with upper carrier belts transmission system, assure much stable running of thick board or corrugated board.

▪ The positions of 2 lanes carries are driven by servo motors.

▪ Telescopic upper and lower carriers easily adapt to most box formats.

▪ Kicker counter and spraying counter are equipped as standard.

▪ Camera for live status.

▪ Jam detector.

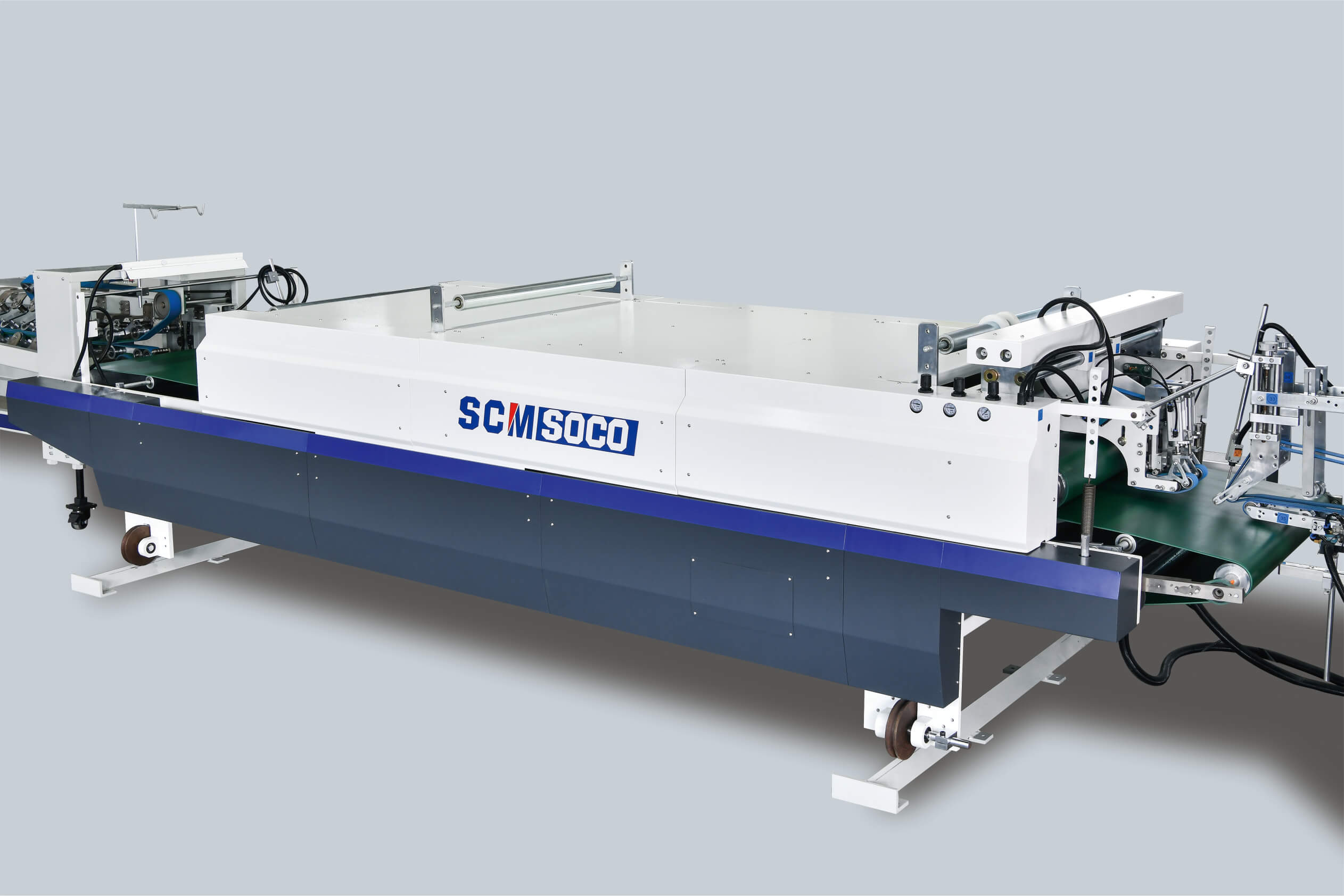

DELIVERY SECTION

▪ 5 meter advanced compression conveyor.

▪ Independent servo motor driven ensures the regular box stream.

▪ Motorized forward and backward moving for the upper section.

▪ Left and right position movable.

▪ Two split pressing, one sponge belt.

▪ Height adjustable lower belt at conveyor entry for pressure control.

▪ Pneumatic squaring device at conveyor entry to work out perfect bottom effect, especially for short body and wide lock bottom boxes.

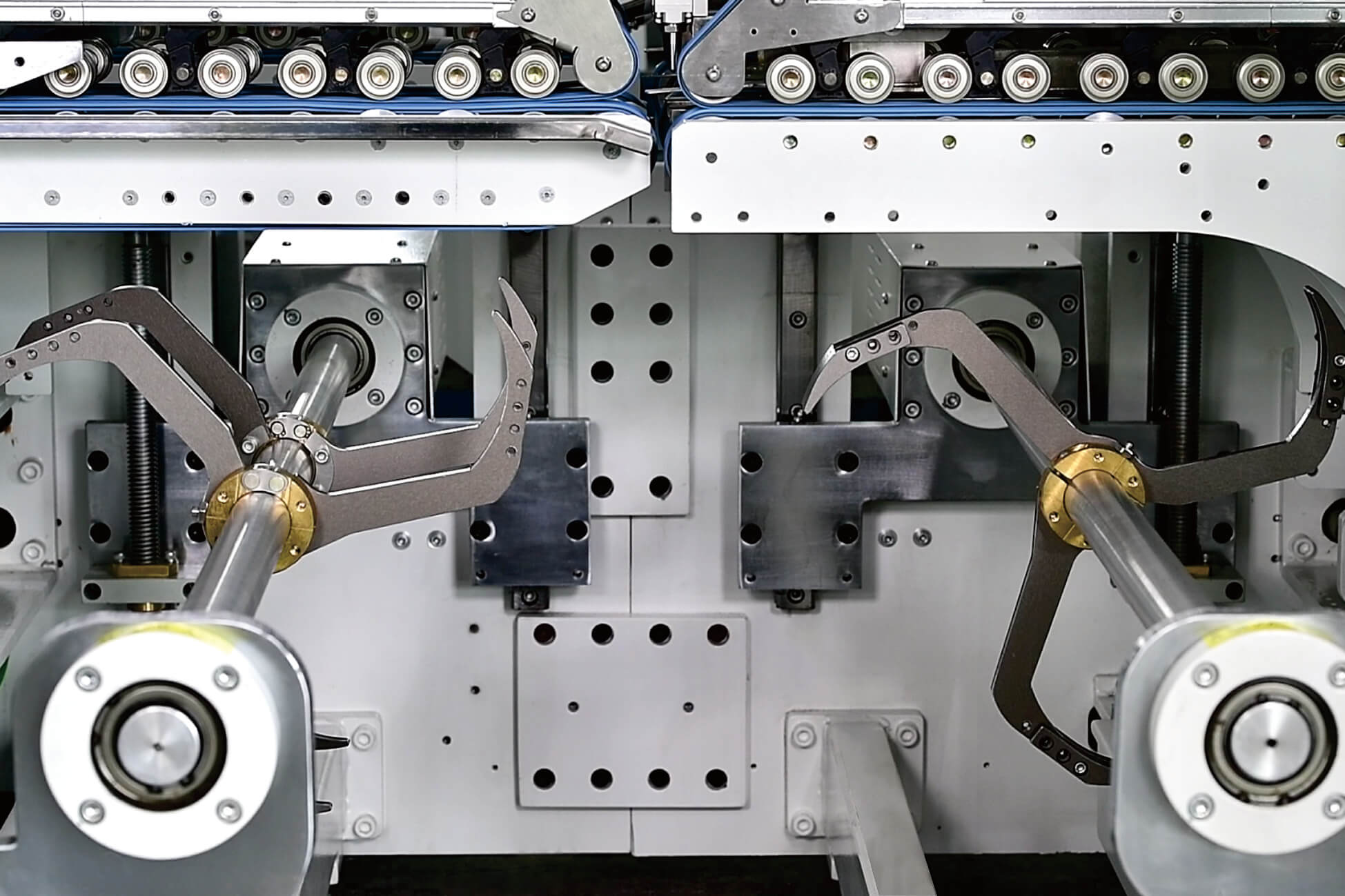

BACK FOLDING SYSTEM

▪ Fast set-up of 4/6 corner boxes.

▪ Individually servo-controlled hook shafts with automatic moving up and down.

▪ One hook size adjusting to all flaps sizes, no need to change hooks for various jobs.

▪ No need to remove hooks when back folding system are not used.

▪ Accurate back folding process with max. speed 20,000pcs/h (option: 45,000pcs/h)

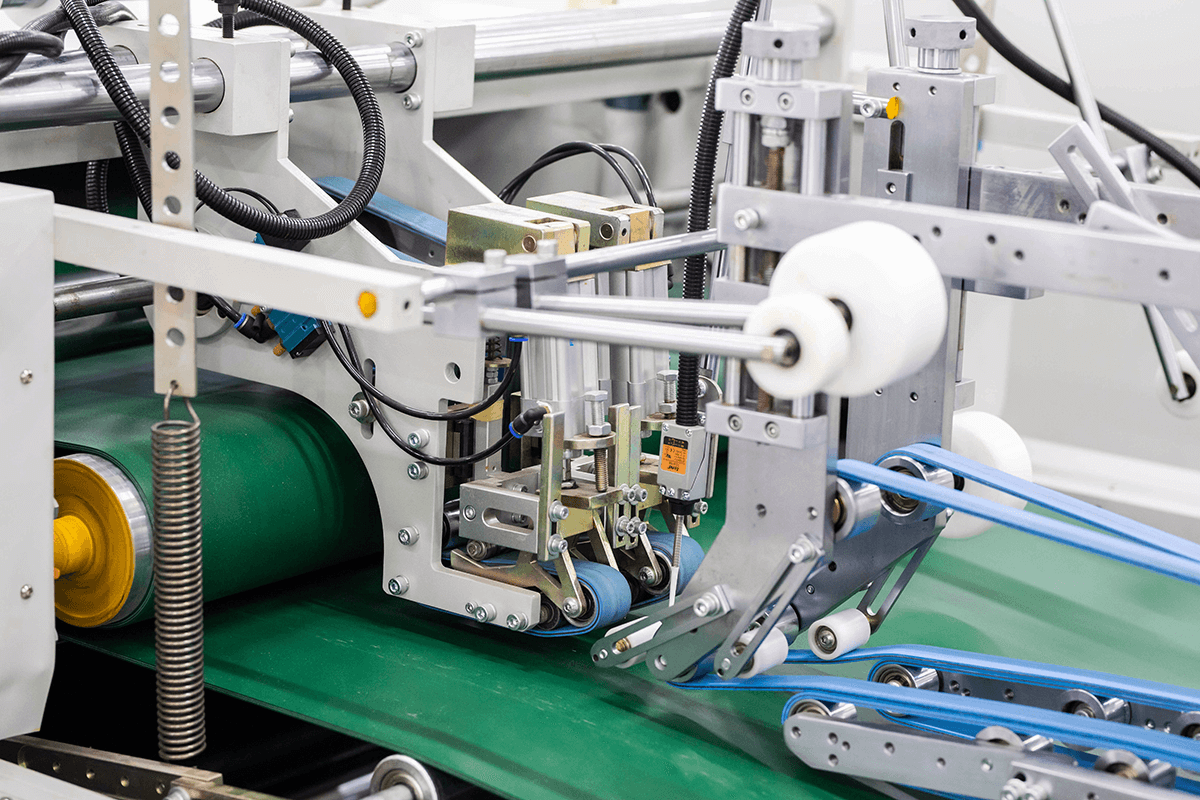

PNEUMATIC SQUARING DEVICE

▪ Pneumatic squaring device at conveyor entry to work out perfect bottom effect, especially for short body and wide lock bottom boxes.

▪ World brand components including:

Cylinder: brand Festo, Germany

Magnetic valve: brand Mac, USA

Pressing belt: brand Nitta, Japan

Linear guide slide: brand THK, Japan
